WGS3 Layer 3 Switch User’s Manual
- 37 -

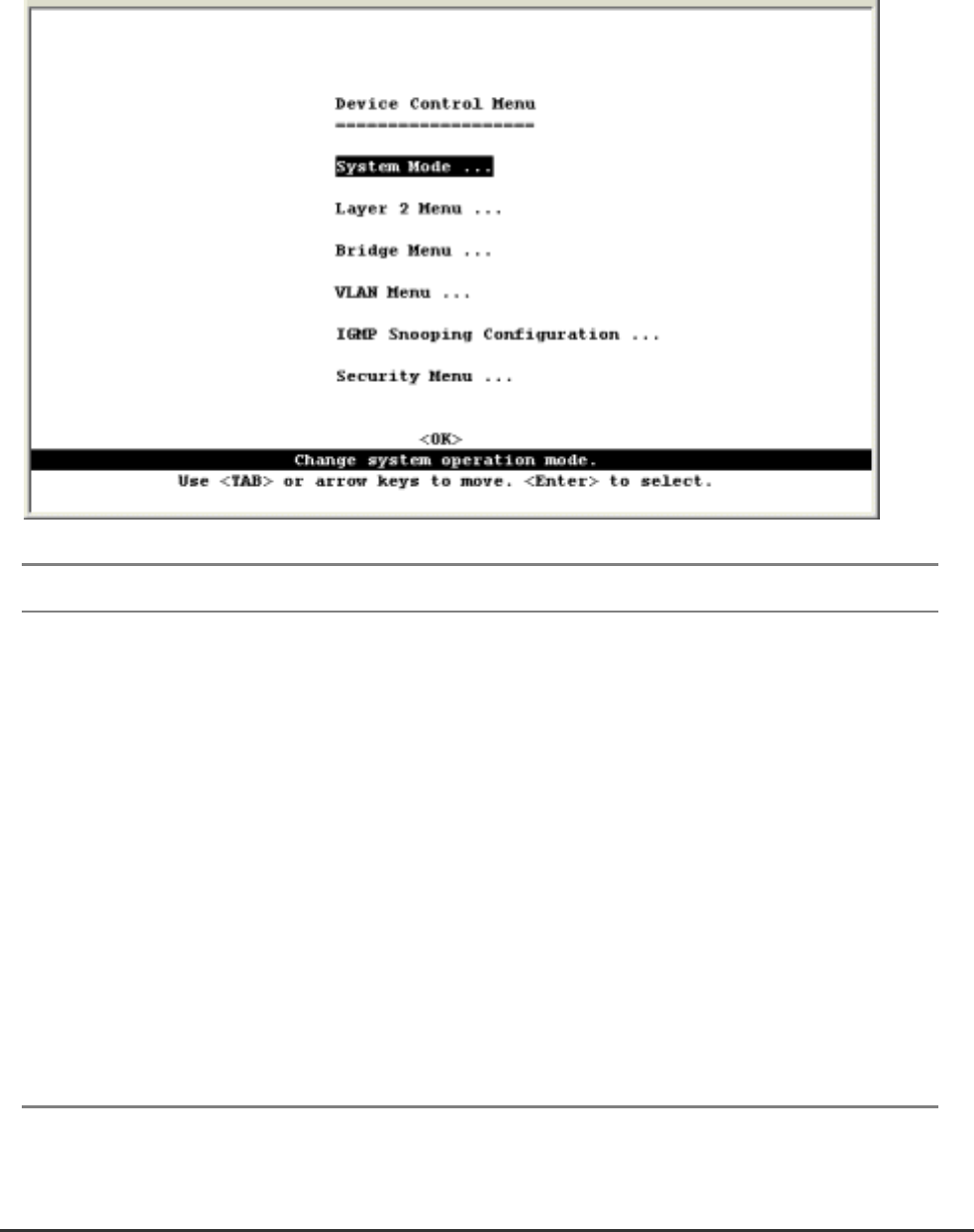

4.5 Device Control Menu
The Device Control menu is used to control a broad range of functions, including port mode, port
mirroring, port trunking, Spanning Tree, Virtual LANs, IP subnets, multicast filtering, and routing protocols.
Each of the setup screens provided by these configuration menus is described in the following sections.
Menu Description
System Mode Sets the switch to operate as a Layer 2 switch or as a multilayer routing switch.
Layer 2 Menu Configures port communication mode, mirror ports, and port trunking.
Bridge Menu Configures the Spanning Tree Protocol for the bridge or for specific ports,
GMRP and GVRP for automatic registration of multicast and VLAN groups,
traffic class priority threshold, and address aging time.
VLAN Menu Configures VLAN settings for specific ports, and defines the port membership
for VLAN groups.
IGMP Snooping
Configuration
*1
Configures IGMP multicast filtering.
IP Menu
*2
Configures the subnets for each VLAN group, global configuration for unicast
and multicast routing protocols, IGMP snooping
Security Restrict access through MAC address or IP address
*2
Jumbo Packet Menu Allow the WGS3-404 to send up to 9k jumbo packet
1: Only displayed for Layer 2 mode of WGS3-2620.
2: Only displayed for Multilayer mode of WGS3-2620 and WGS3-404.
3: Only displayed for WGS3-404
