WGS3 Layer 3 Switch User’s Manual
- 35 -

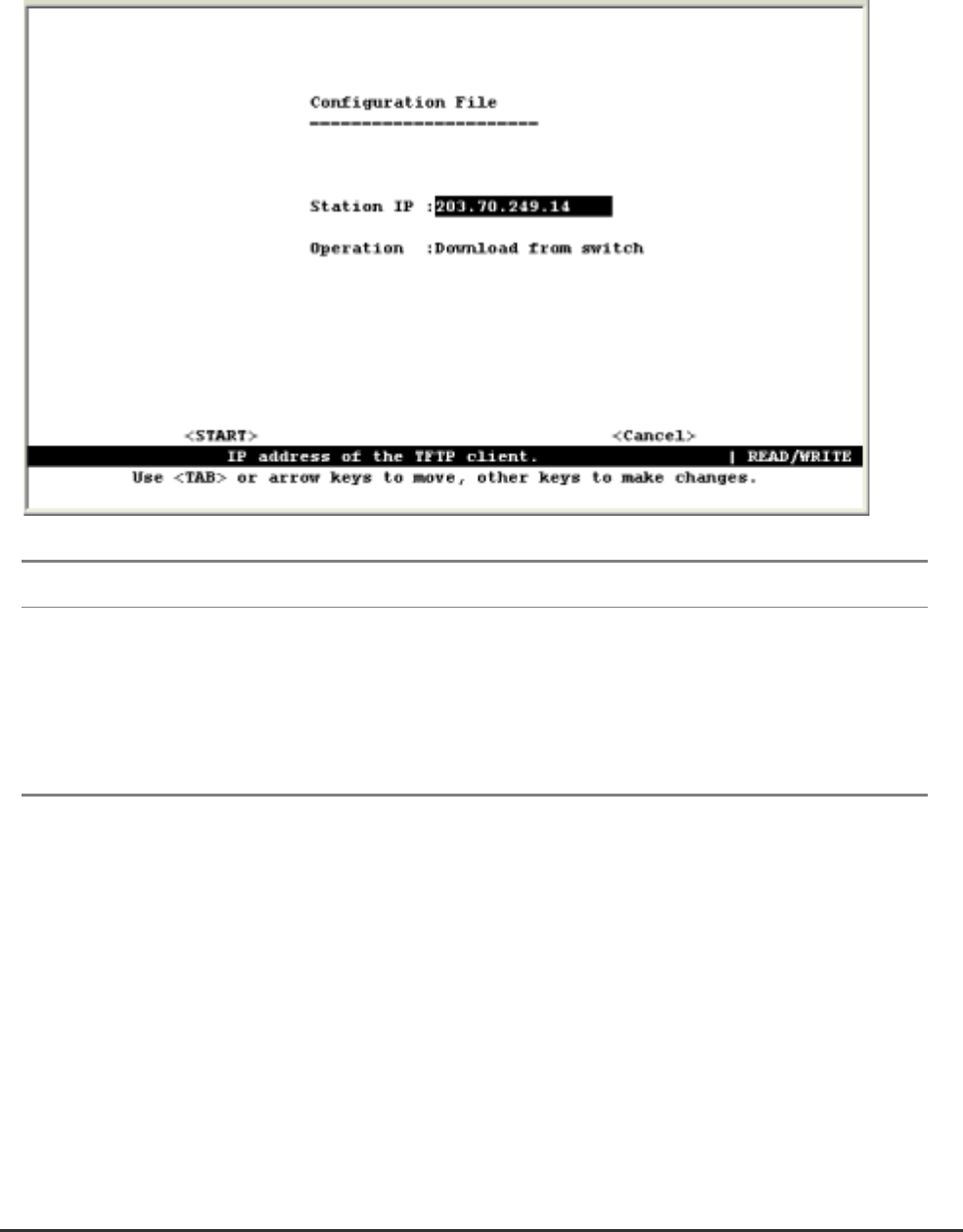

4.4.6 Saving or Restoring the System Configuration
Use the Configuration File menu to save the switch configuration settings to a file on a TFTP client. The
file can be later downloaded to the switch to restore the switch’s settings. The success of the operation
depends on the accessibility of the TFTP client and the quality of the network connection. Parameters
shown on this screen are indicated in the following figure and table.
Parameter Description
Station IP IP address of a PC running TFTP client software.
Operation Download from switch – Downloads the current switch configuration to a file
on the client PC.
Upload to switch – Uploads a configuration file to the switch from the client
PC.
