WGS3 Layer 3 Switch User’s Manual
- 32 -

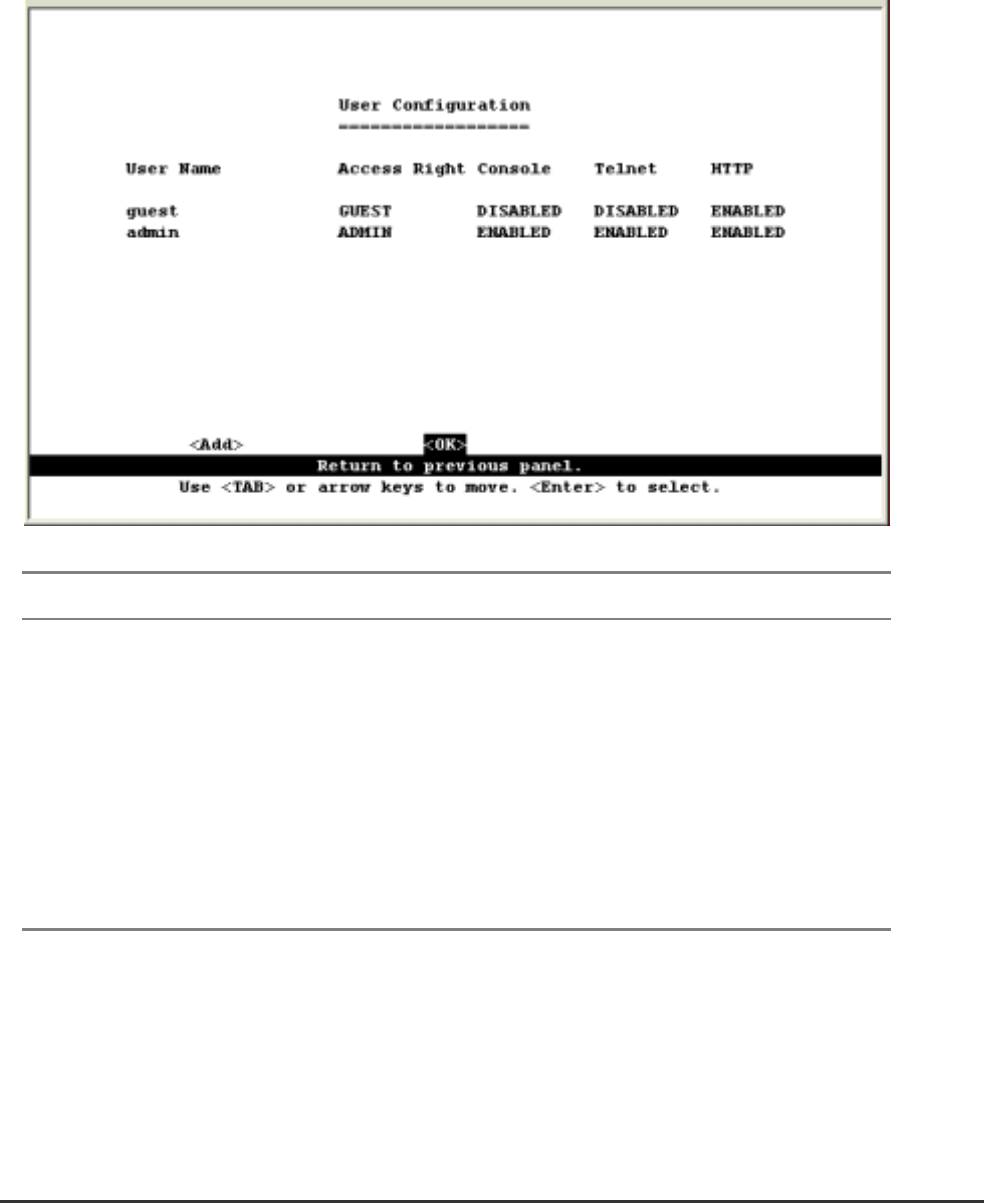

4.4.4 User Login Configuration
Use the User Configuration menu to restrict management access based on specified user names and
passwords. There are two user types, Administrator and Guest. Only the Administrator has write access
for parameters governing the SNMP agent. You should therefore assign a user name and password to
the Administrator as soon as possible, and store it in a safe place. (If for some reason your password is
lost, or you cannot gain access to the System Configuration Program, contact Technical Support for
assistance.) The parameters shown on this screen are indicated in the following figure and table.
Parameter Description
User Name Specifies a user authorized management access to the switch via the console,
Telnet or HTTP.
Access Right There are two options. ADMIN: Read/Write for all screens. GUEST: Read Only
for all screens.
Console Authorizes management via the console.
Telnet Authorizes management via Telnet.
HTTP Authorizes management via HTTP (that is, Microsoft Internet Explorer 4.0 or later
version. It does not support Netscape currently).
