WGS3 Layer 3 Switch User’s Manual
- 25 -
4.4.1.2 IP Connectivity Test (Ping)

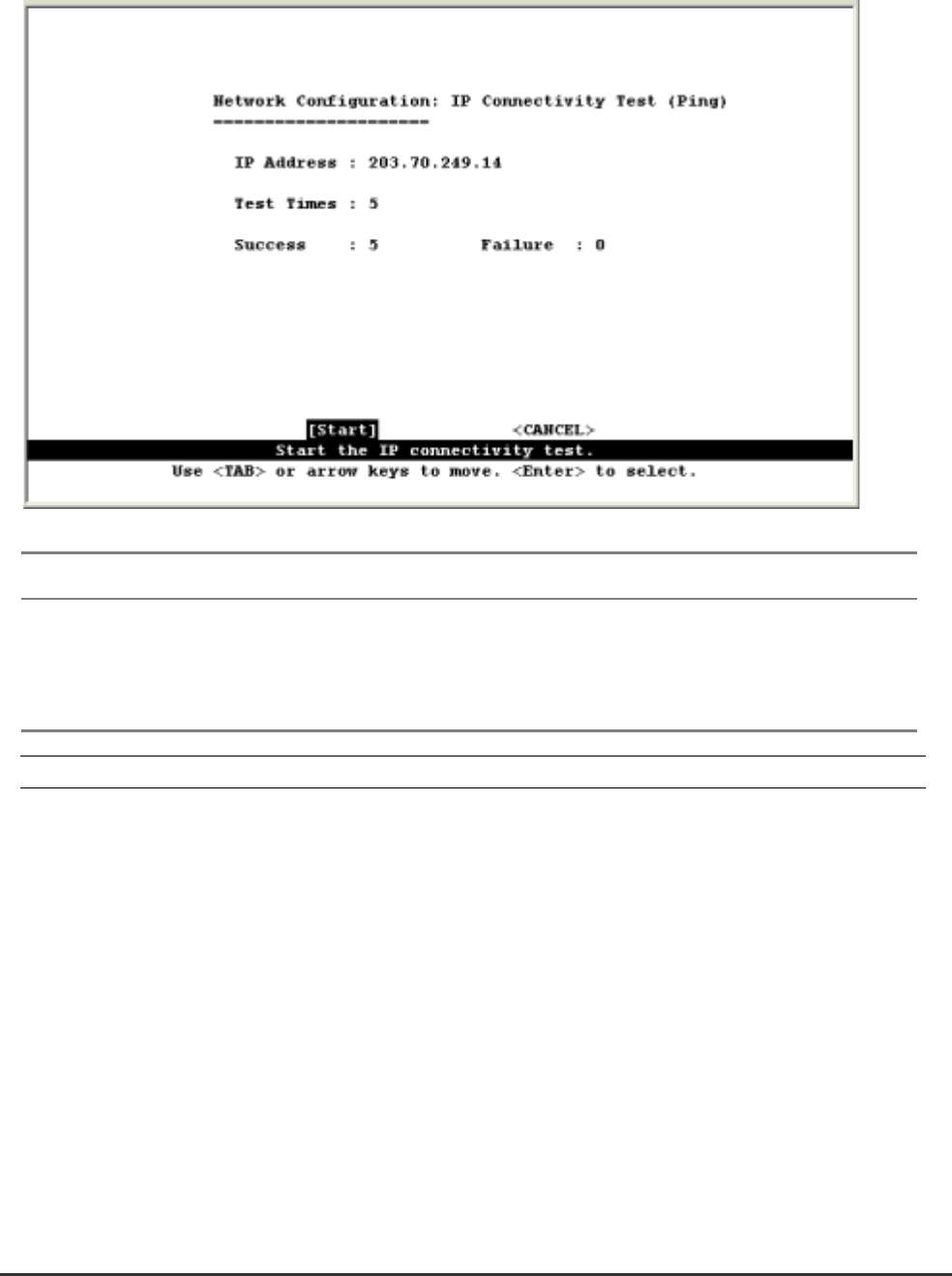

Use the IP Connectivity Test to see if another site on the Internet can be reached. The screen shown
below is described in the following table.
Parameter Description
IP Address IP address of the site you want to ping.
Test Times The number of ICMP echo requests to send to the specified site. Range: 1~1000
Success / Failure The number of times the specified site has responded or not to pinging.
NOTE: The switch waits up to 10 seconds for a response to each ping.
