WGS3 Layer 3 Switch User’s Manual
- 18 -
4.3.1 Displaying System Information

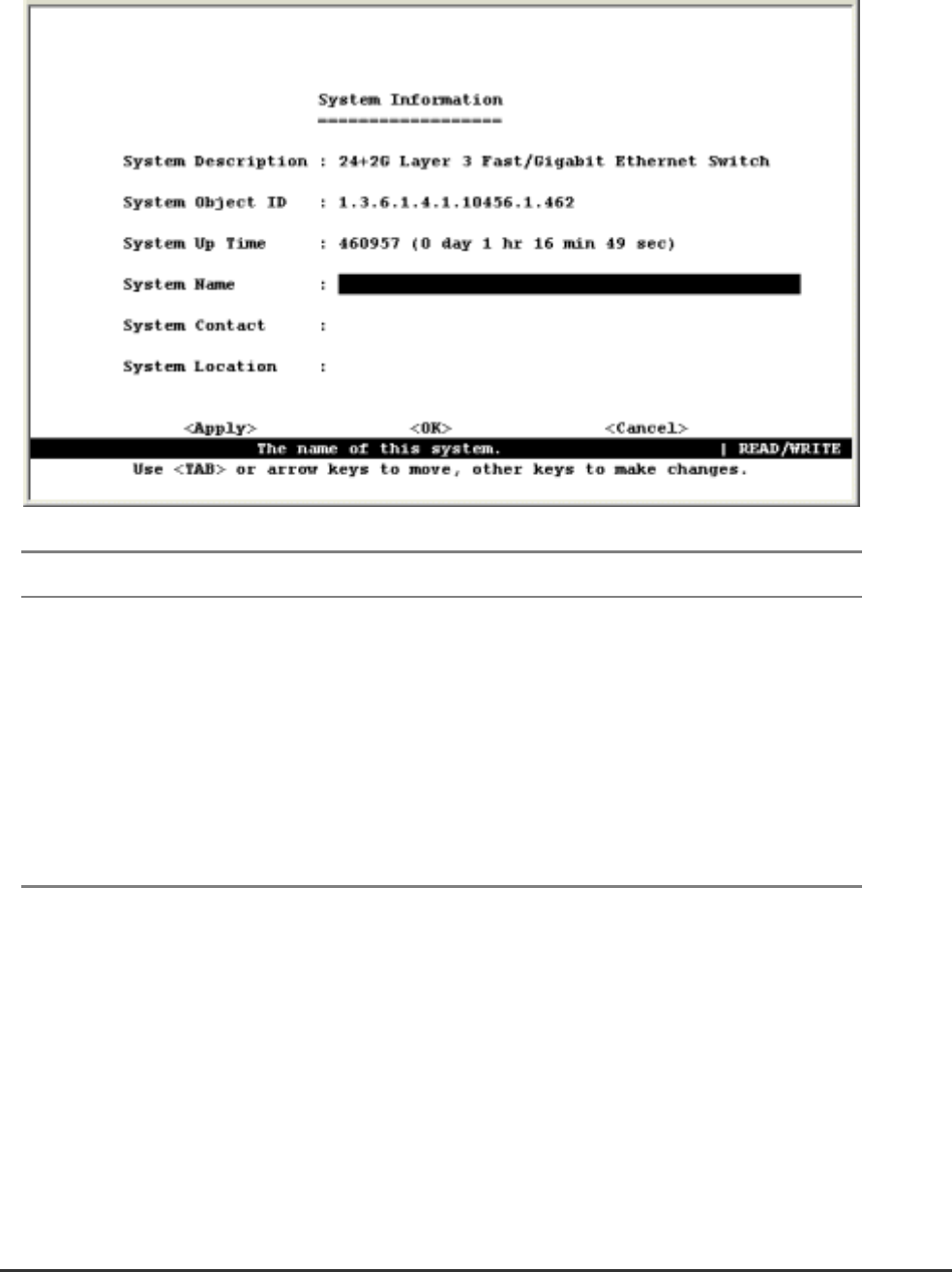

Use the System Information screen to display descriptive information about the switch, or for quick
system identification as shown in the following figure and table.
Parameter Description
System Description System hardware description.
System Object ID MIB II object identifier for switch’ s network management subsystem.
System Up Time Length of time the current management agent has been running. (Note
that the first value is centiseconds.)
System Name* Name assigned to the switch system.
System Contact* Contact person for the system.
System Location* Specifies the area or location where the system resides.
* Maximum string length is 99, but the screen only displays 45 characters. You can use the arrow
keys to browse the whole string.
