WGS3 Layer 3 Switch User’s Manual
- 15 -
4.2 Main Menu
With the system configuration program you can define system parameters, manage and control the

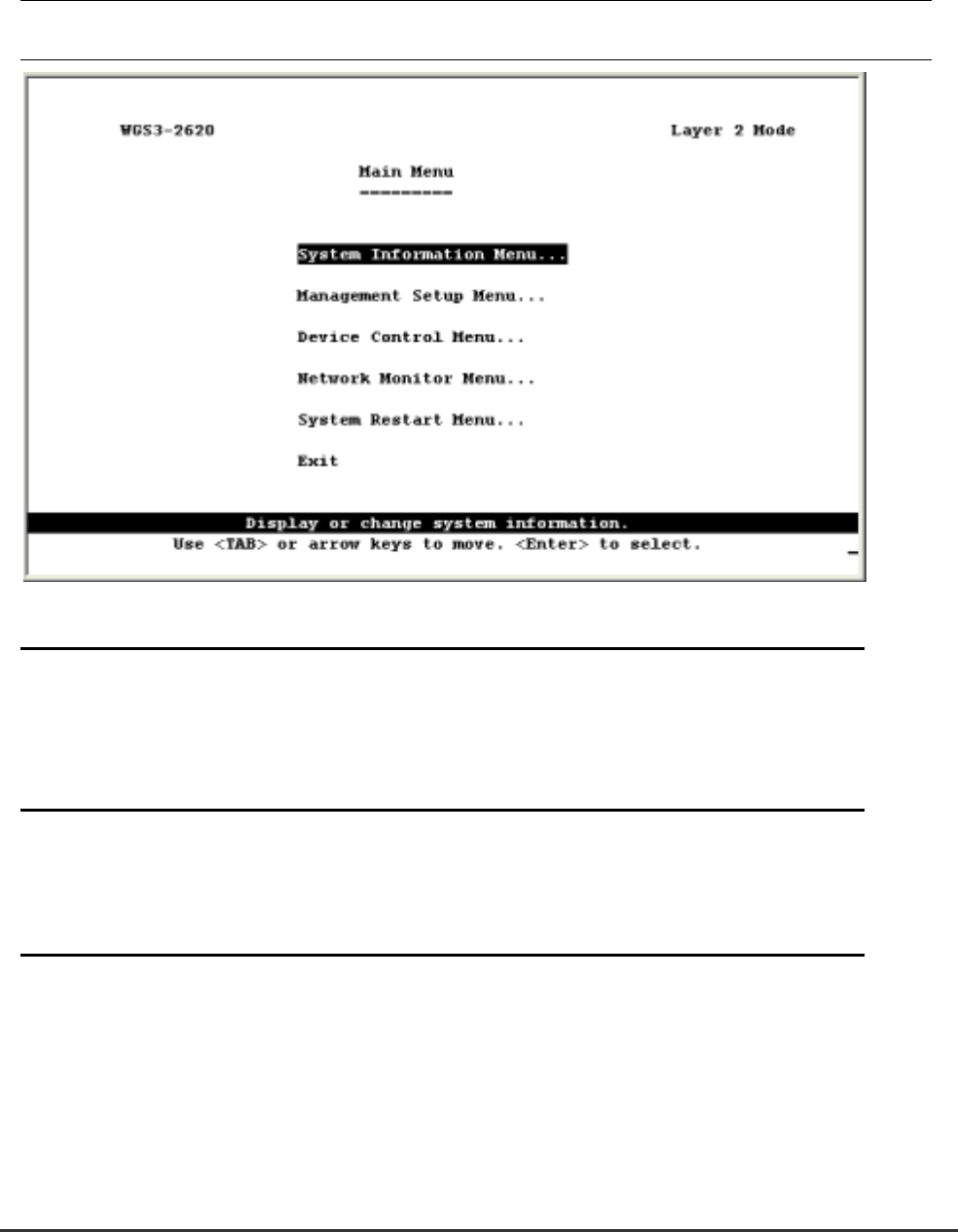

switch and all its ports, or monitor network conditions. The figure below of the Main Menu and the
following table briefly describe the selections available from this program.
NOTE: Options for the currently selected item are displayed in the highlighted area at the bottom of the
interface screen.
Menu Description
(Operation Mode) The text string in the top right corner of the screen shows if the switch is
operating as a Layer 2 switch or as a multilayer routing switch.
WGS3-404 is always operating as a multilayer routing switch and not
showing this message.
System Information Menu
System Information Provides basic system description, including contact information.
Switch Information Shows hardware/firmware version numbers, power status, and
expansion modules used in the switch.
Management Setup Menu
Network Configuration Includes IP Configuration
*1
, Ping facility, and HTTP (Web agent) setup.
Serial Port
Configuration
Sets communication parameters for the serial port, including baud rate,
console time-out, and screen data refresh interval.
SNMP Configuration Activates authentication failure traps; and configures community access
strings, and trap managers.
User Configuration Sets the user names and passwords for system access.
