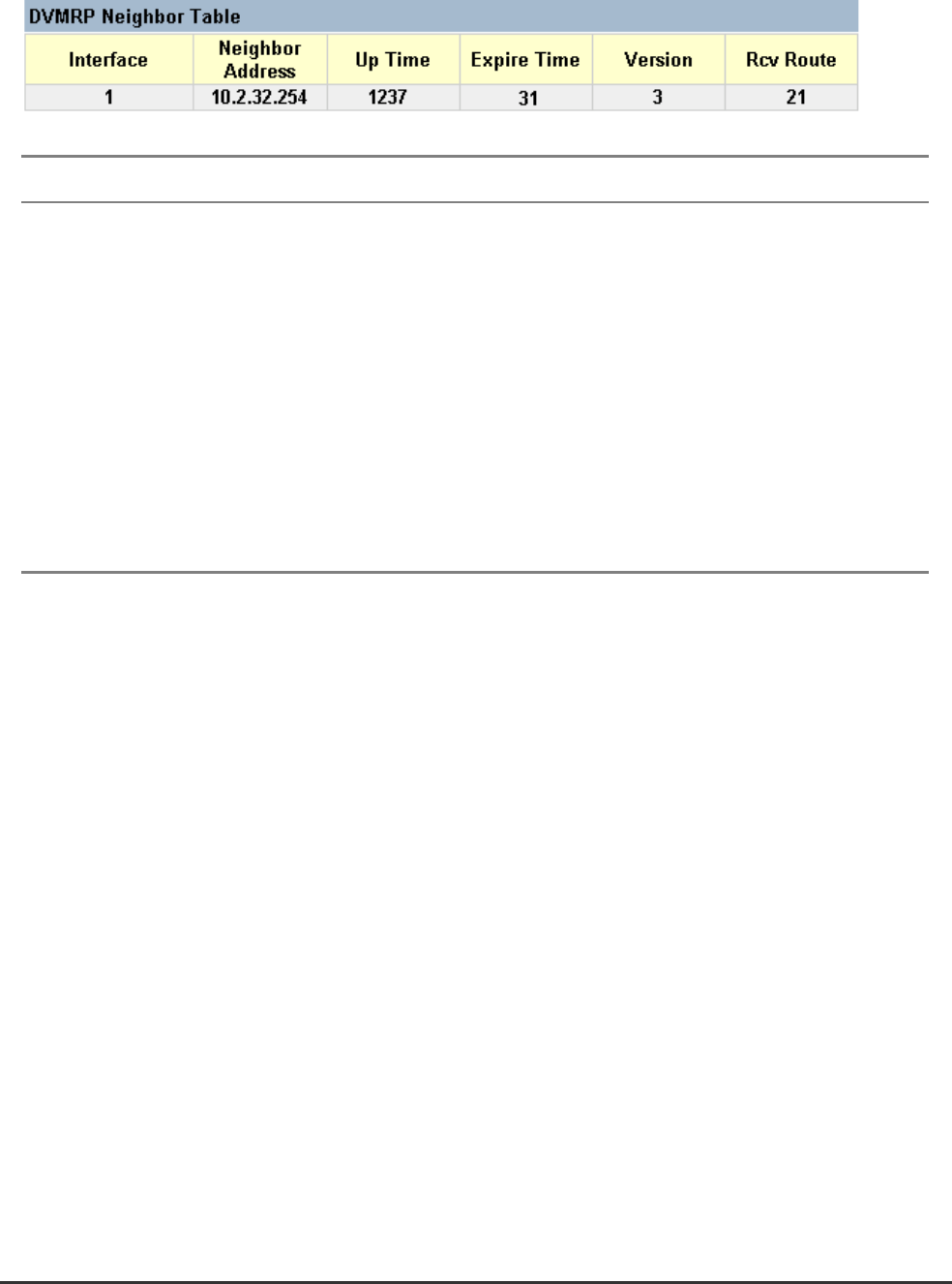

5.8.6.4.4 Displaying the DVMRP Neighbor Table
The DVMRP Neighbor Table contains the switch’s DVMRP neighbors, as discovered by receiving
DVMRP protocol messages.
Parameter Description
Interface The IP interface on this switch that connects to the upstream neighbor. (See 5.8.6.1
Displaying Subnet Information.)
Neighbor
Address
The IP address of the network device immediately upstream for this multicast delivery
tree.
UpTime The time since this device last became a DVMRP neighbor to this switch.
ExpireTime The time remaining before this entry will be aged out.
Version The neighboring router’s DVMRP version number.
Rcv Route The total number of routes received in valid DVMRP packets from this neighbor. This
can be used to diagnose problems such as unicast route injection, as well as giving an
indication of the level of DVMRP route exchange activity.
