WGS3 Layer 3 Switch User’s Manual
- 213 -

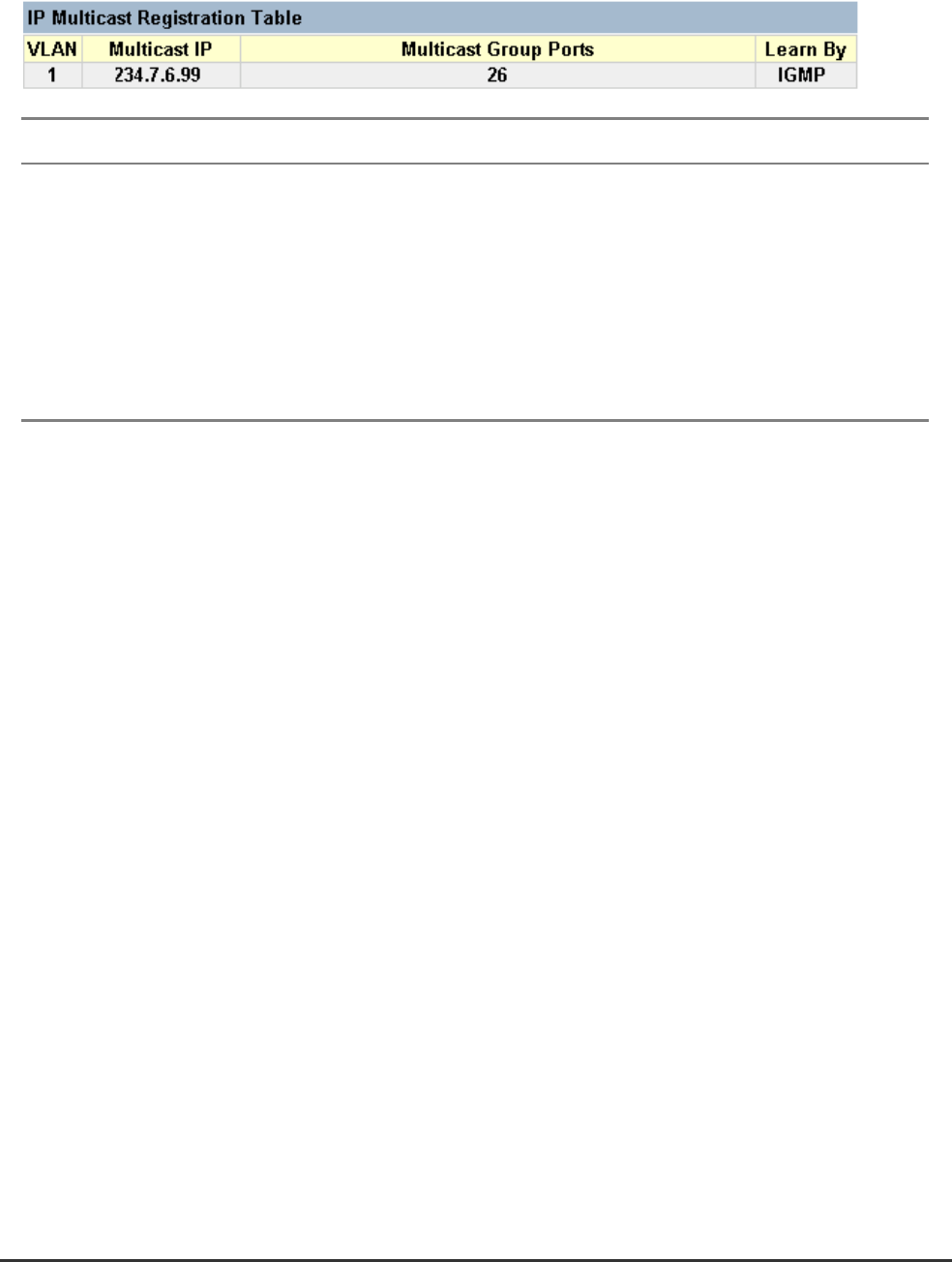

5.8.5 IP Multicast Registration Table
This table displays all the multicast groups active on the switch, including the multicast IP address and
the corresponding VLANs.
Parameter Description
VLAN A VLAN with host members that have asked to receive the indicated multicast service.
Multicast IP A source IP address that represents a specific multicast service.
Multicast Group
Ports
The ports that belong to the indicated VLAN group.
Learned By Shows if this entry was learned dynamically or via IGMP Snooping. An entry is
learned dynamically if a multicast packet was seen crossing the port, or via IGMP
Snooping if an IGMP registration packet was seen crossing the port.
