WGS3 Layer 3 Switch User’s Manual
- 212 -
5.8.4 Displaying VLAN Information
These menus display information on the ports that have been automatically learned via GVRP and all
those ports that have been configured by dynamic or static means to forward VLAN traffic.
Menu Description
VLAN Dynamic
Registration
Information
Shows the ports that have been automatically learned via GVRP.
VLAN Forwarding
Information
Shows all those ports that have been configured by either dynamic or static
means to forward VLAN traffic.

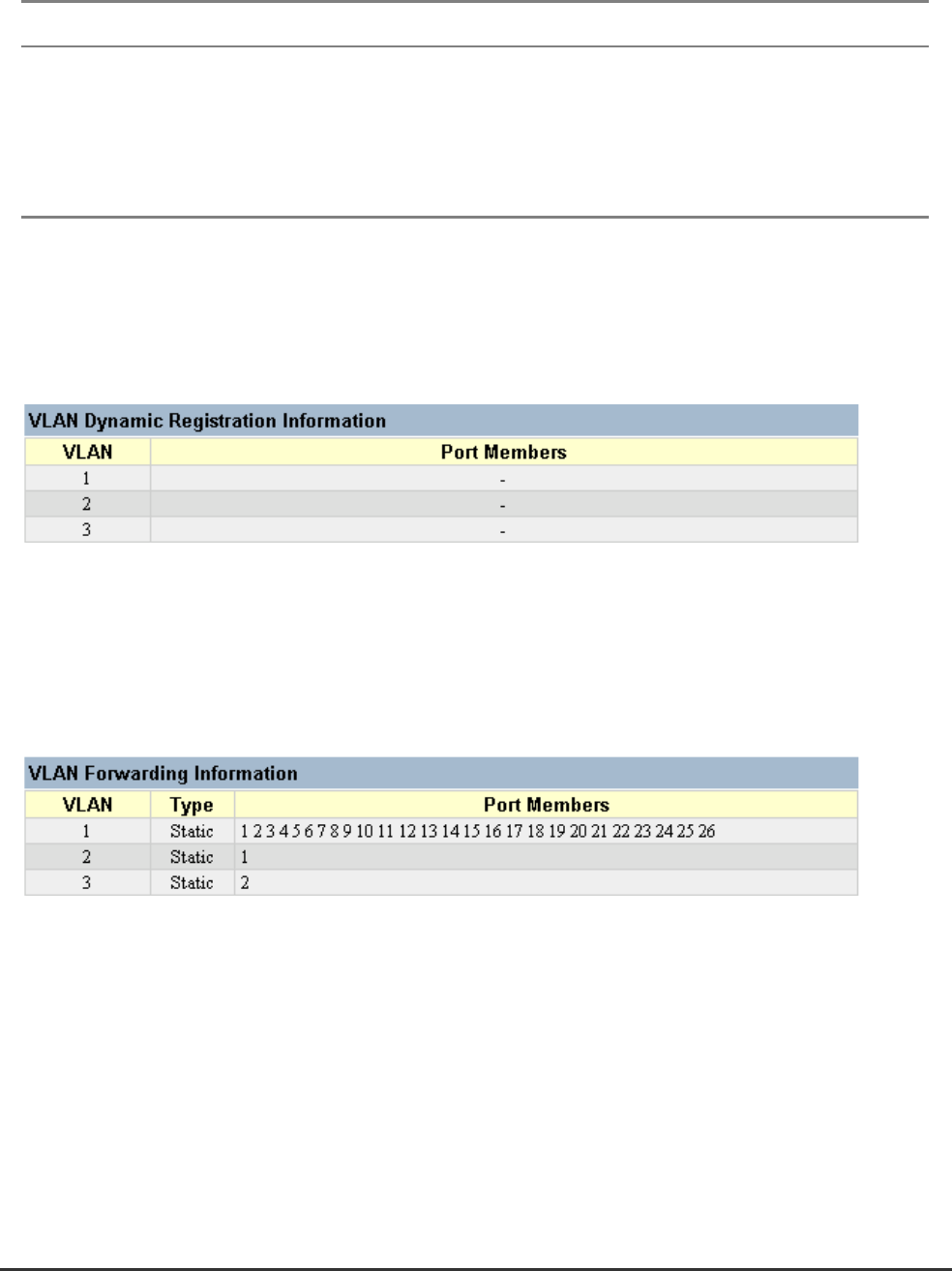

5.8.4.1 VLAN Dynamic Registration Information
This table shows the ports that have been automatically learned via GVRP.
5.8.4.2 VLAN Forwarding Information
Shows all those ports that have been configured by either dynamic or static means to forward VLAN
traffic.
