WGS3 Layer 3 Switch User’s Manual
- 207 -
5.8.2 Layer 2 Address Tables
This menu includes the unicast address table.
Menu Description
Unicast Address Table Provides a full listing for unicast addresses.
5.8.2.1 Displaying the Unicast Address Table
The Unicast Address Table contains the MAC addresses associated with each port (that is, the source
port associated with the address). The information displayed in the Address Table is indicated in the

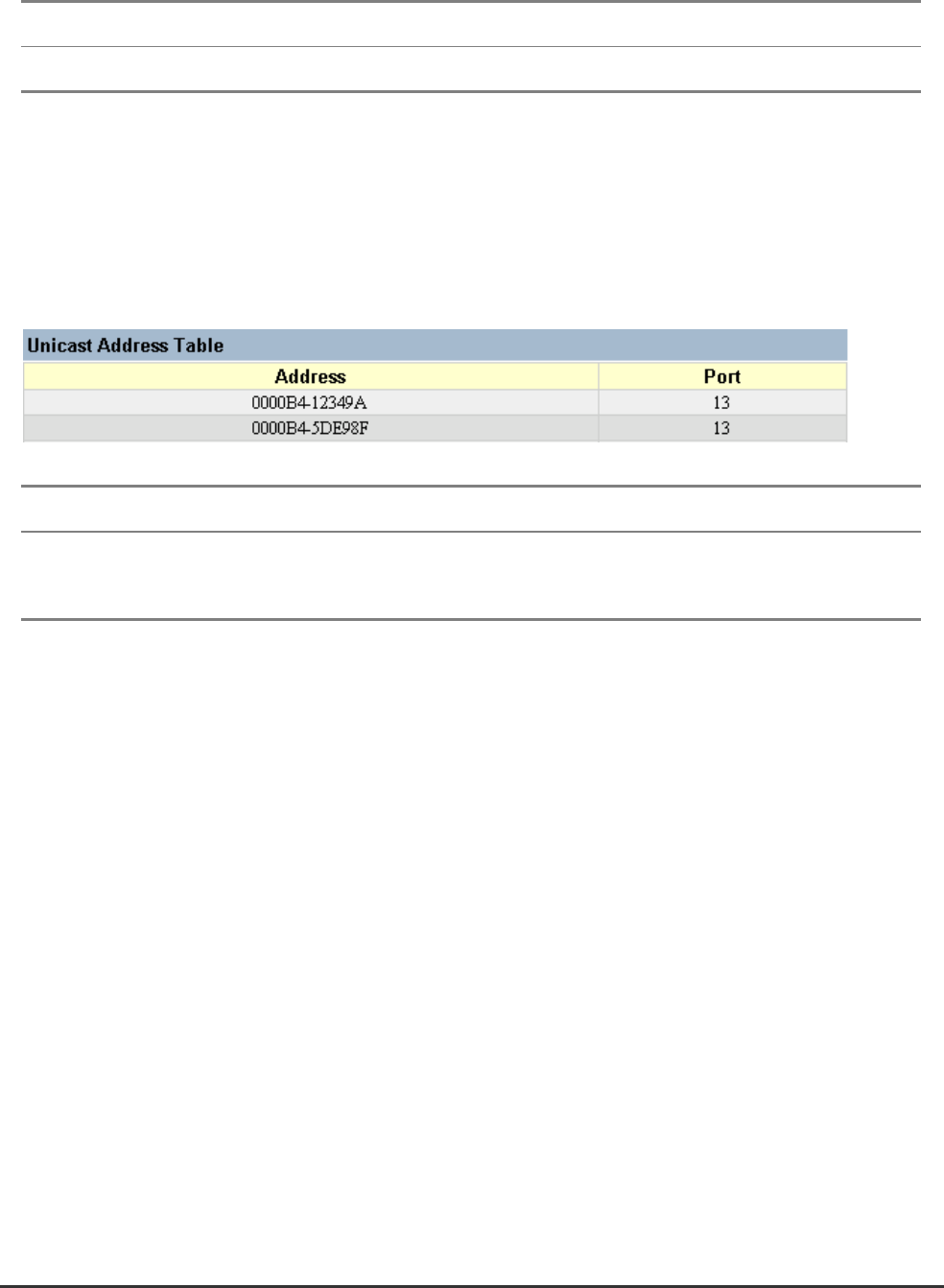

following figure and table.
Parameter Description
Address The MAC address of a node seen on this switch.
Port The port whose address table includes this MAC address.
