WGS3 Layer 3 Switch User’s Manual
- 195 -
5.7.5.3 Static ARP Configuration

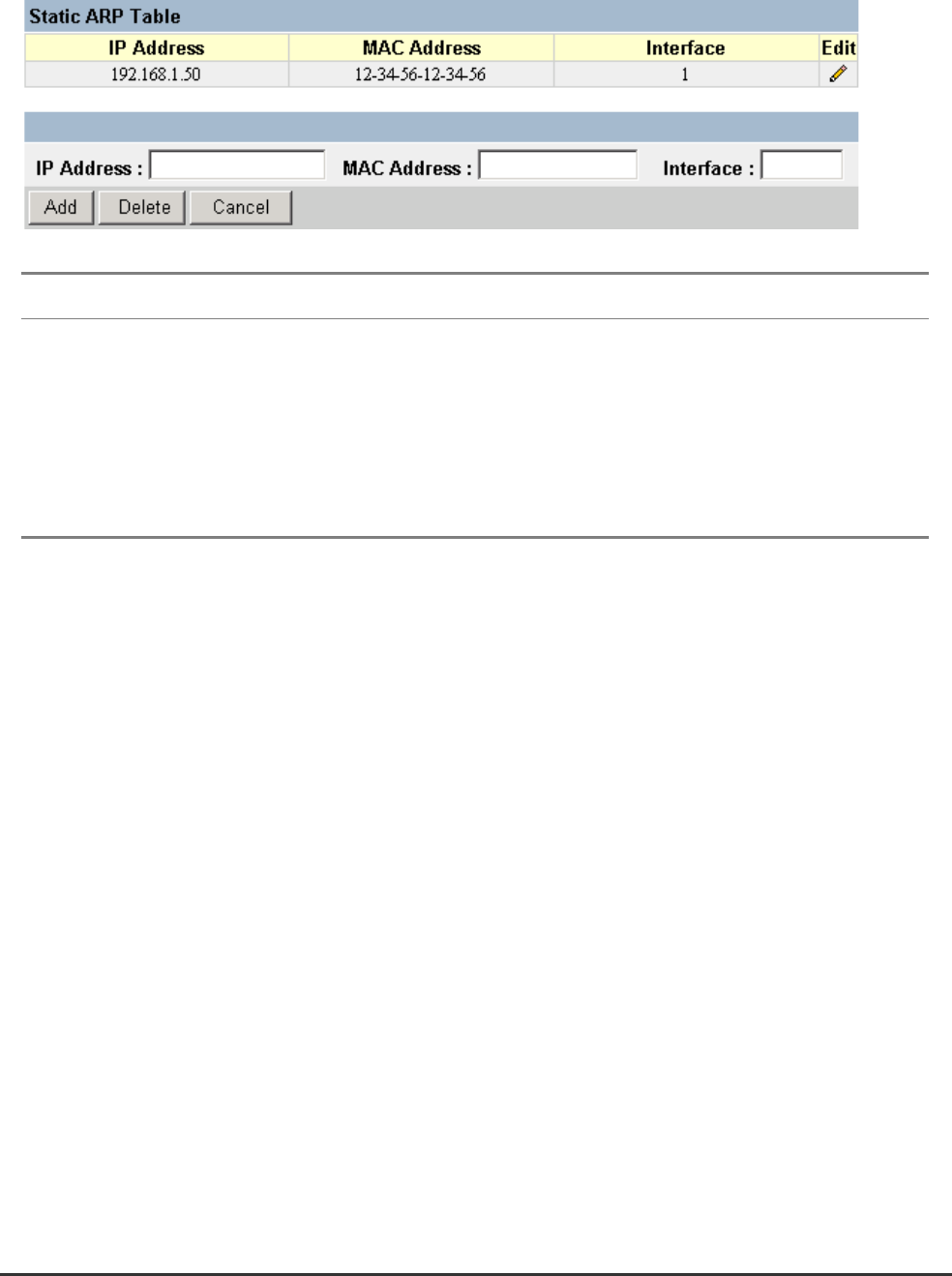

Use the following screen to display or edit entries in the Static ARP Table. Entries added to this table are
retained until the associated IP interface is deleted or the switch is reset to the factory defaults.
Parameter Description
IP Address IP address statically mapped to a physical MAC address.
MAC Address MAC address statically mapped to the corresponding IP address.
Interface The index number of the IP interface that will use this static ARP entry. See
5.7.5.1 Subnet Configuration or 5.8.6 IP Menu.
