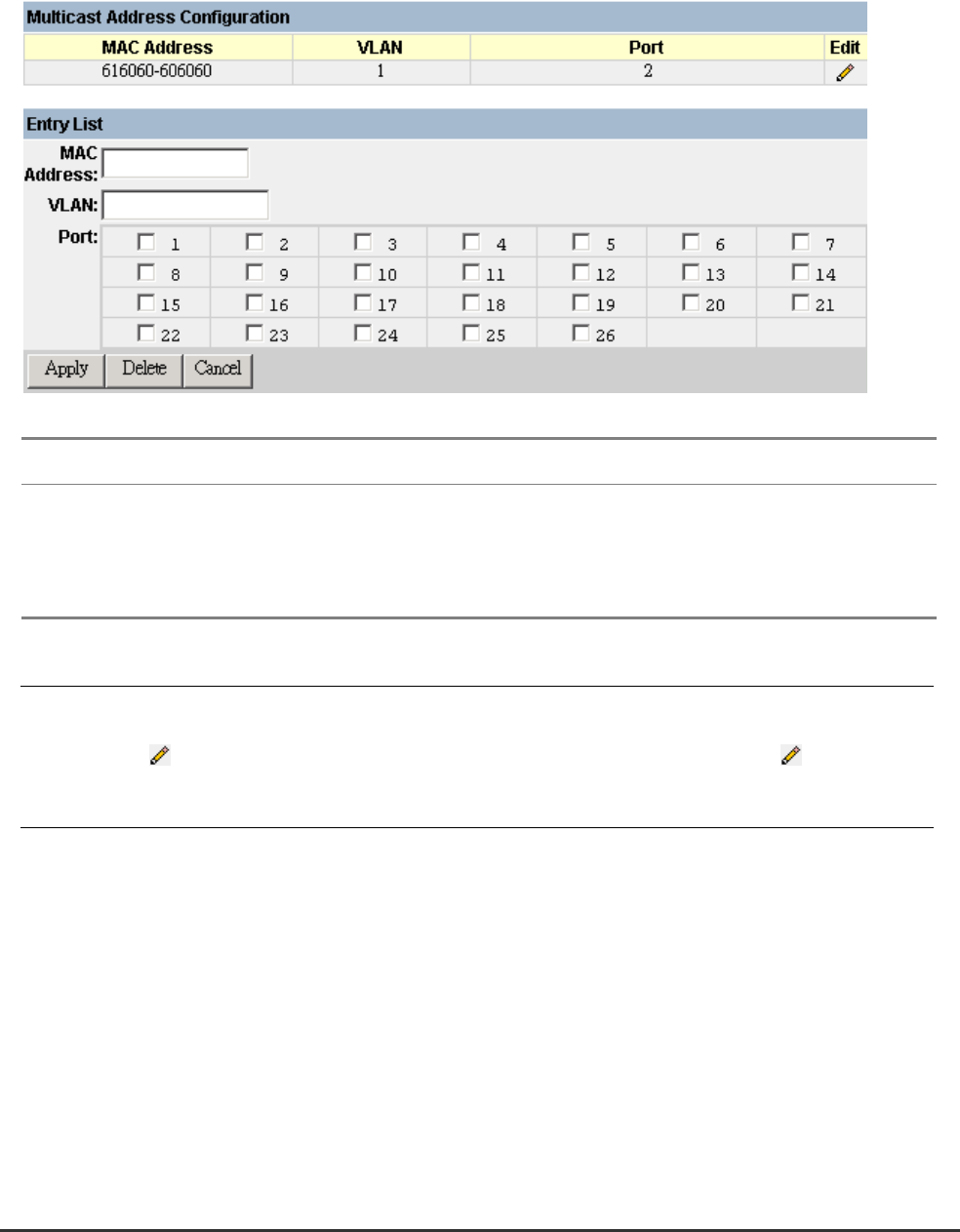

5.7.1.5 Configuring the Static Multicast Address Table
The Static Multicast Address Table can be used to assign a destination MAC address (and the
corresponding ports) to the VLAN group used for a specific multicast service. Static multicast addresses
are never aged out, and traffic with these addresses can be forwarded only to ports specified in this
table.
Parameter Description
MAC Address The destination MAC address for a multicast service.
VLAN The VLAN corresponding to this multicast service.
Port. The ports to which this multicast traffic can be forwarded
NOTE: To assign a destination MAC address to one or more ports, enter its address and the
corresponding VLAN, select the required ports, and then press Apply. To delete an address,
click
and press Delete for the required entry. To modify an address, press for the
required entry to copy the configuration to the edit fields, make any necessary changes, then
press Apply.
