WGS3 Layer 3 Switch User’s Manual
- 161 -
5.7.1.4 Static Unicast Address Table
The Static Unicast Address Table can be used to assign the MAC address for a host device to a specific
port on this switch. Static unicast addresses are never aged out, and cannot be learned by another port.
If any packets with a source address specified in this table enter another port, they will be dropped. The

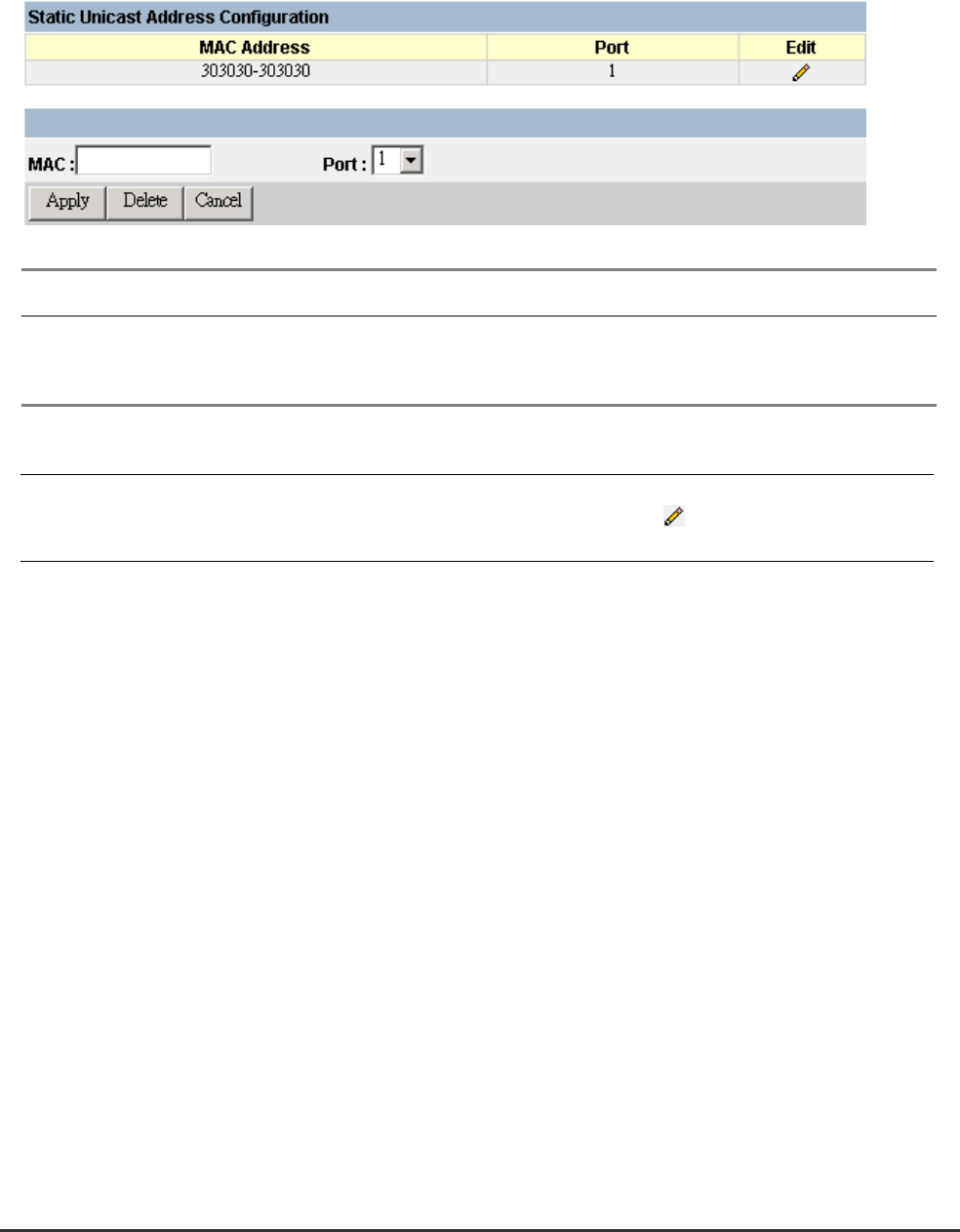

Static Unicast Address Table is described in the following figure and table.
Parameter Description
MAC Address The MAC address of a host device attached to this switch.
Port The port to which the host device is attached.
NOTE: To assign an address to a specific port, enter it in the MAC Address field, select the
corresponding port, and press Save. To delete an address, click and press Delete for the
required entry.
