WGS3 Layer 3 Switch User’s Manual
- 155 -
5.7.1 Layer 2 Menu
The Layer 2 menu contains options for port configuration, port mirroring, and port trunking. These menu
options are described in the following sections.
Menu Description
Port Configuration Enables any port, enables/disables flow control, and sets communication mode to
auto-negotiation, full duplex or half duplex.
Mirror Port
Configuration
Sets the source and target ports for mirroring.
Port Trunking
Configuration
Specifies ports to group into aggregate trunks.
Static Unicast
Address Table
Used to manually configure host MAC addresses in the unicast table.
Static Multicast
Address Table
Used to manually configure host MAC addresses in the multicast table.
5.7.1.1 Configuring Port Parameters
Use the Port Configuration menu to display and Edit icon to set communication parameters for any port
on the switch, including administrative status, auto-negotiation, default communication speed and duplex
mode, as well as flow control in use.
Click

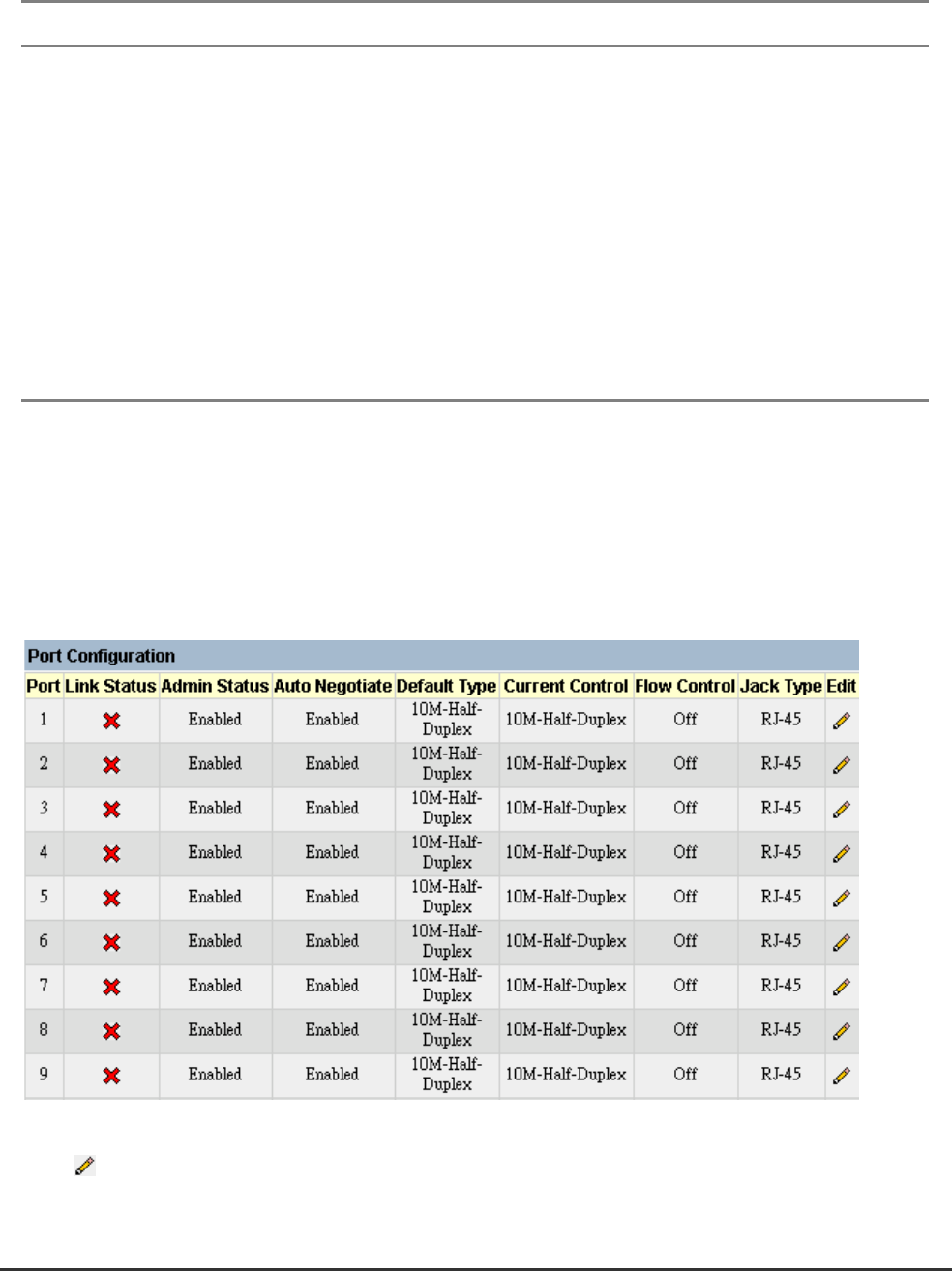

, the following table will be show to allow setting each port’s parameter.
