WGS3 Layer 3 Switch User’s Manual
- 152 -
5.6.4 Downloading System Software
Use the TFTP Download menu to load software updates to permanent flash ROM in the switch. The
download file should be a binary file or an image file; otherwise the agent will not accept it. The success
of the download operation depends on the accessibility of the TFTP server and the quality of the network
connection. After downloading the new software, the agent will automatically restart itself. Parameters

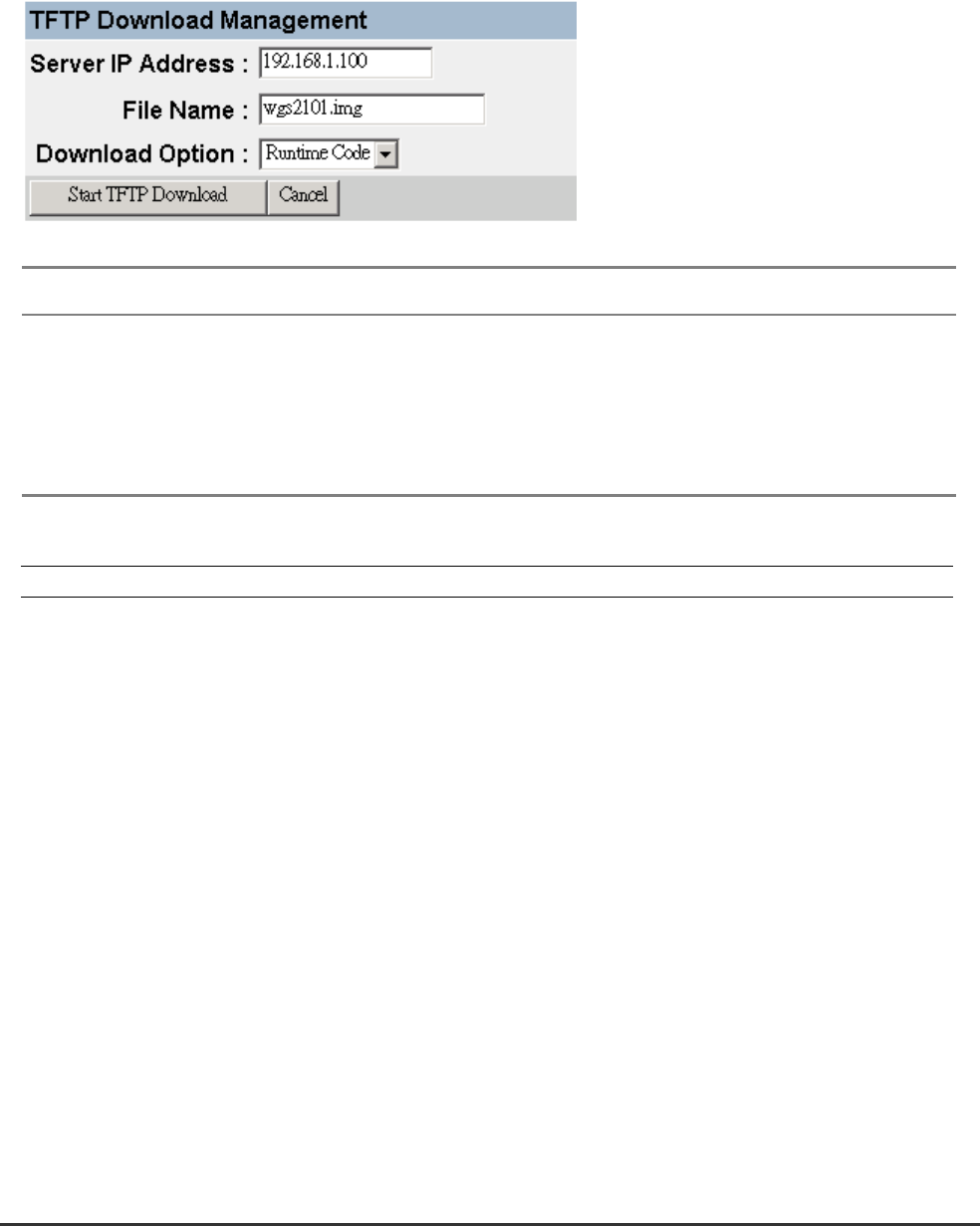

shown on this screen are indicated in the following figure and table
Parameter Description
Server IP Address IP address of a TFTP server.
File Name The binary file or image file to download.
Download Option * Specify the file to be Runtime Code or POST Code
Start TFTP Download Issues request to TFTP server to download the specified file.
NOTE: WGS3-404 does not need to specify this option.
