WGS3 Layer 3 Switch User’s Manual
- 143 -
5.5.2 Displaying Switch Version Information

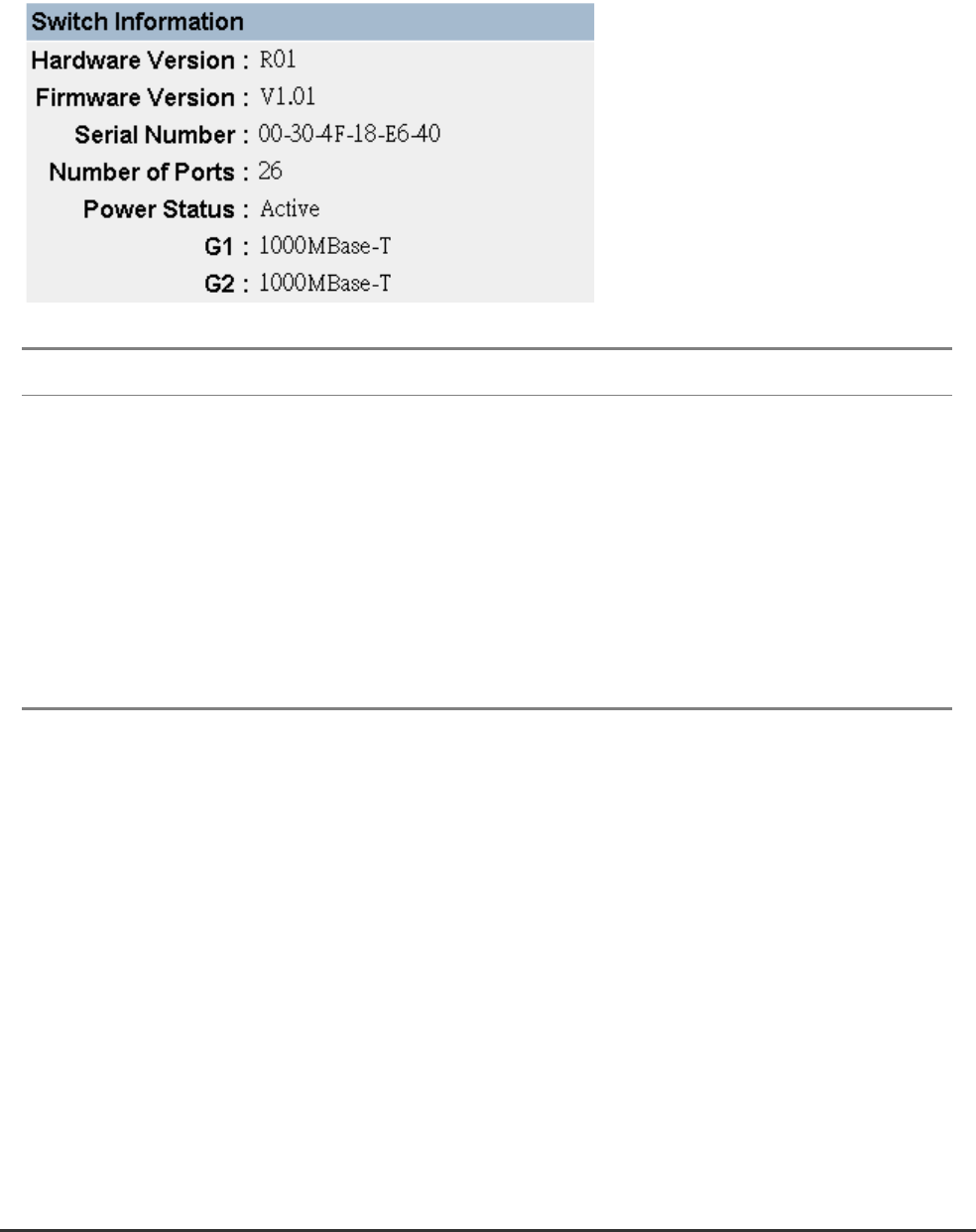

Use the Switch Information screen to display hardware/firmware version numbers for the switch system.
5.5.2.1 WGS3-2620
Parameter Description
Hardware Version Hardware version of the main board.
Firmware Version System firmware version in ROM.
Serial Number Serial number of the main board.
Number of Ports Number of ports on this switch
Power Status Power status for the switch.
Fan Power Status Shows if power to the fan is active or inactive.
G1, G2 Show Connected type of G1 and G2
