WGS3 Layer 3 Switch User’s Manual
- 134 -
5.2 Navigating the Web Browser Interface
To access the Web-browser interface you must first enter a user name and password. The administrator
has Read/Write access to all configuration parameters and statistics. The default user name for the
administrator is “admin” with no password.
5.2.1 Home Page

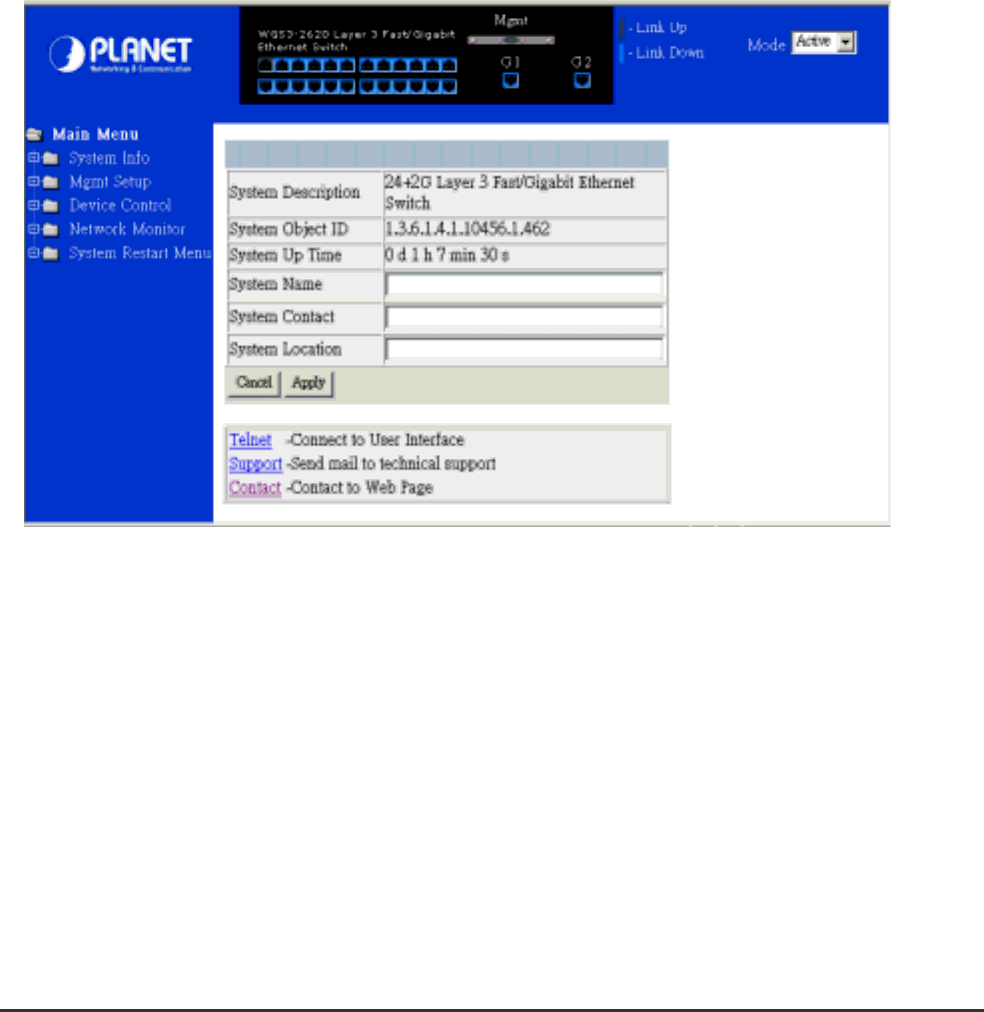

When your Web browser connects with the switch’ s Web agent, the home page is displayed as shown
below for WGS3-2620. The home page displays the Main Menu on the left side of the screen and
System Information on the right side.
The Main Menu links are used to navigate to other menus and display configuration parameters and
statistical data.
