WGS3 Layer 3 Switch User’s Manual
- 124 -

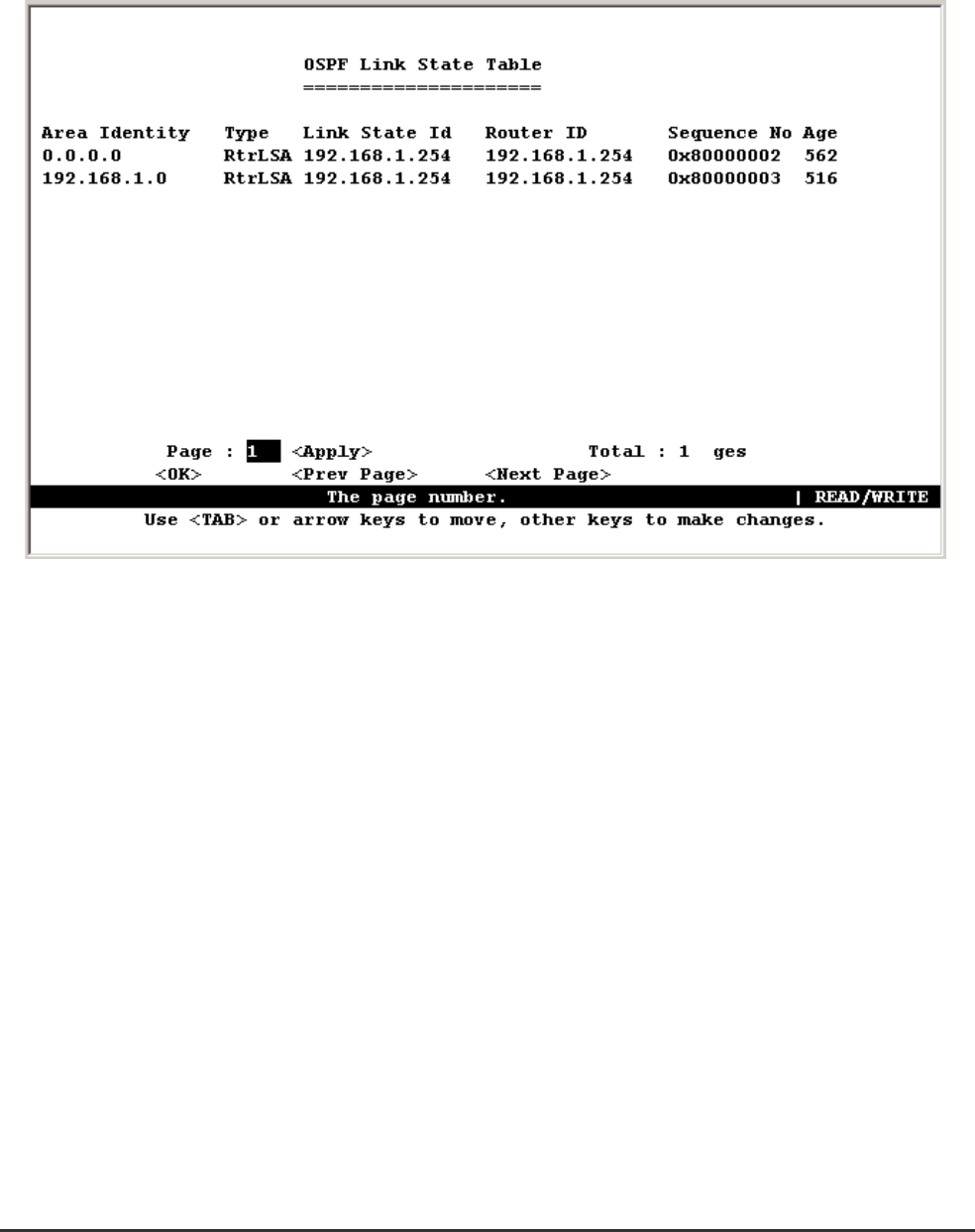

4.6.6.5.2 Displaying the Link State Table
The link state table displays all advertisements in the link state database. This database contains linkage
information for all the areas to which this router is attached. Note that all the routers within an area
exchange information to ensure that they maintain an identical link state database. This database can
therefore be used to troubleshoot network configuration problems.
