WGS3 Layer 3 Switch User’s Manual
- 122 -

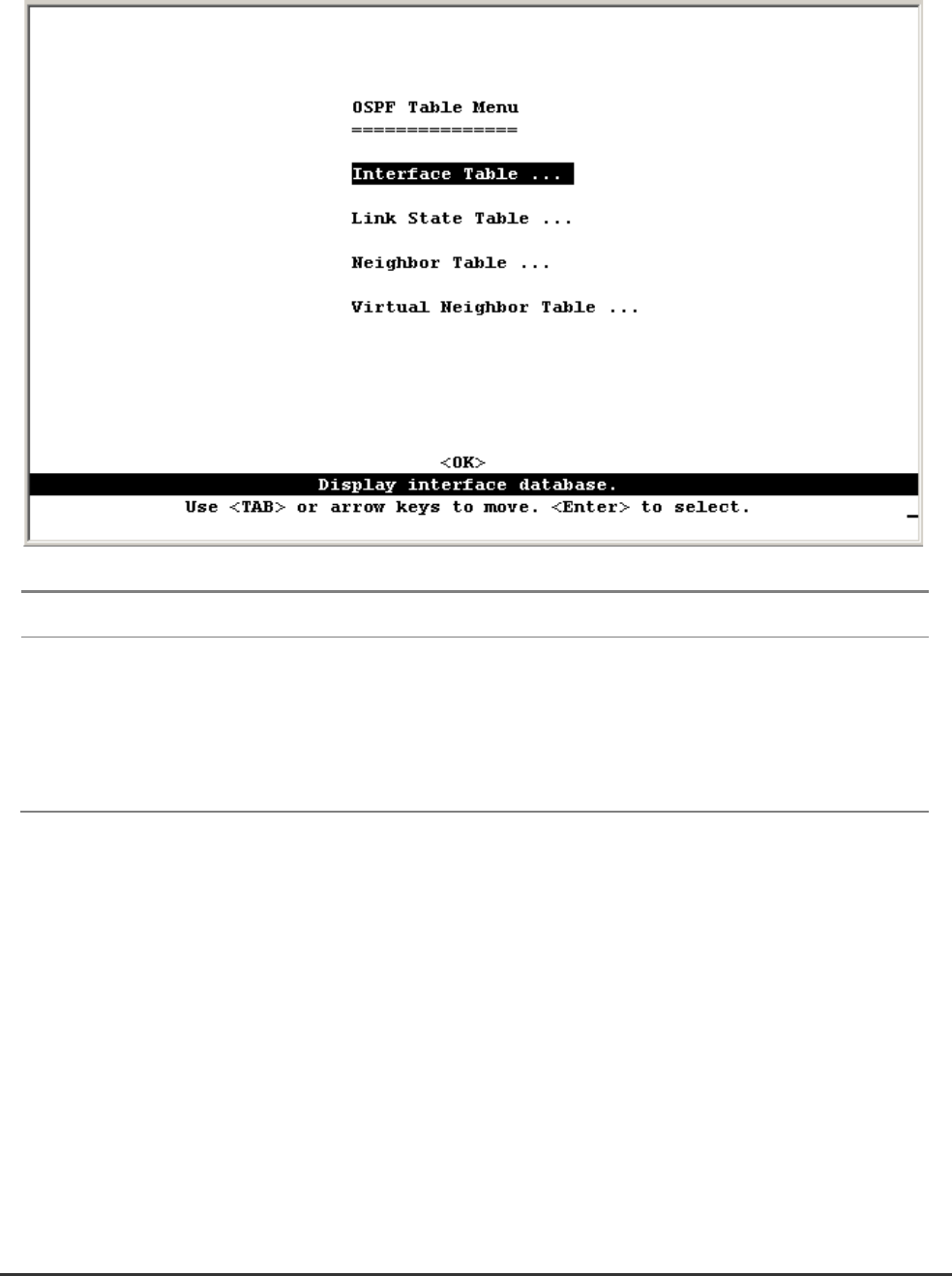

4.6.6.5 OSPF Table
You can use this menu to display the OSPF router linkages for the autonomous system based on the
Link State Table, Neighbor Table, and Virtual Neighbor Table.
Parameter Description
Interface Table Displays interface OSPF status
Link State Table Displays a summary link state advertisements.
Neighbor Table Displays current neighbor routers.
Virtual Neighbor Table Displays current virtual neighbors.
