WGS3 Layer 3 Switch User’s Manual
- 112 -
4.6.6.2 ARP Table

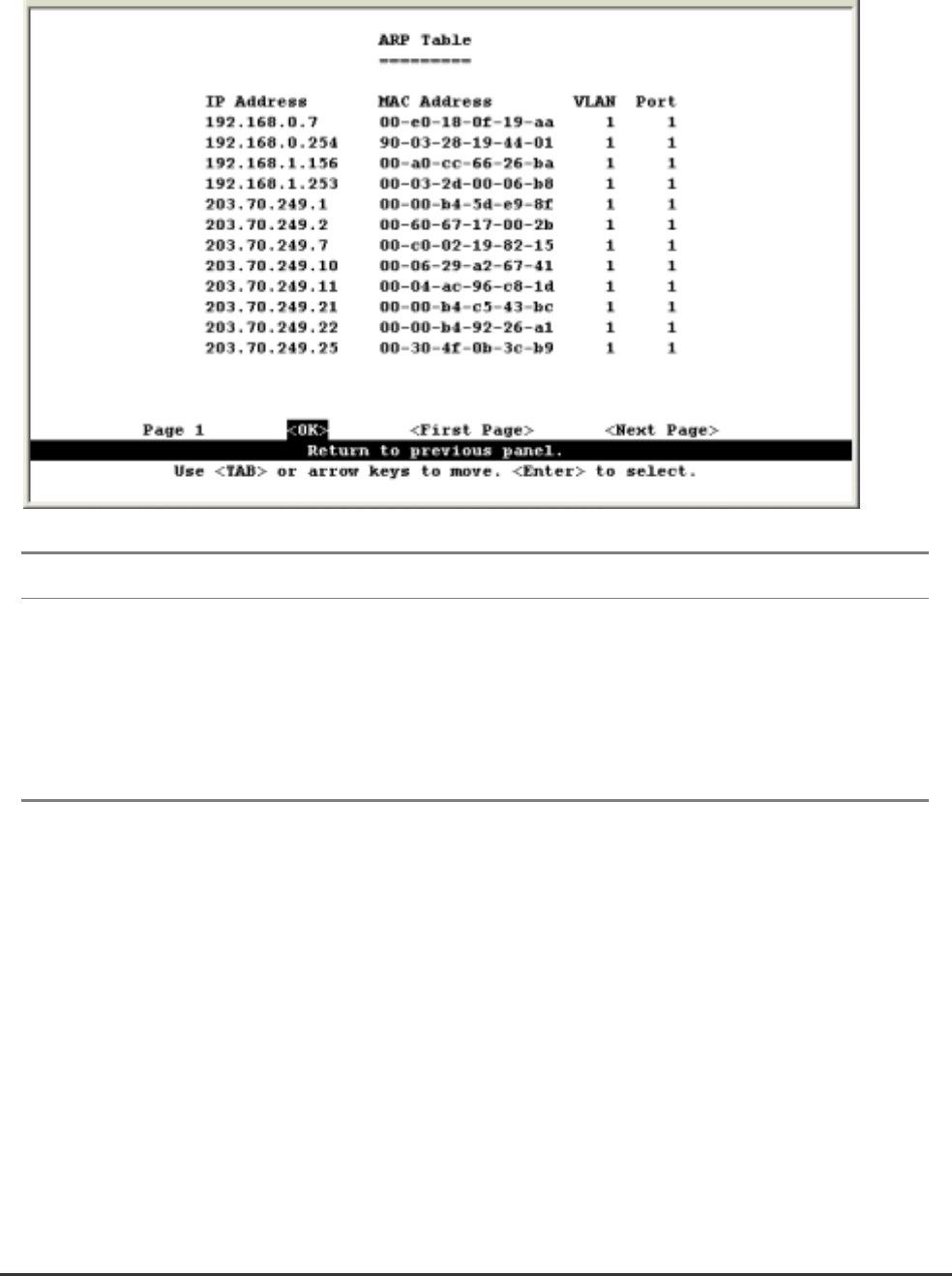

Address Resolution Protocol (ARP) defines a method for finding a host’s Ethernet address from its
Internet address. This table shows the IP-to-MAC address cache discovered via ARP.
Parameter Description
IP Address IP addresses for which ARP has resolved the physical address through a broadcast
message.
MAC Address MAC address that maps to the corresponding IP address.
VLAN The VLAN group to which this host has been assigned.
Port The port to which this host device is attached.
