WGS3 Layer 3 Switch User’s Manual
- 111 -

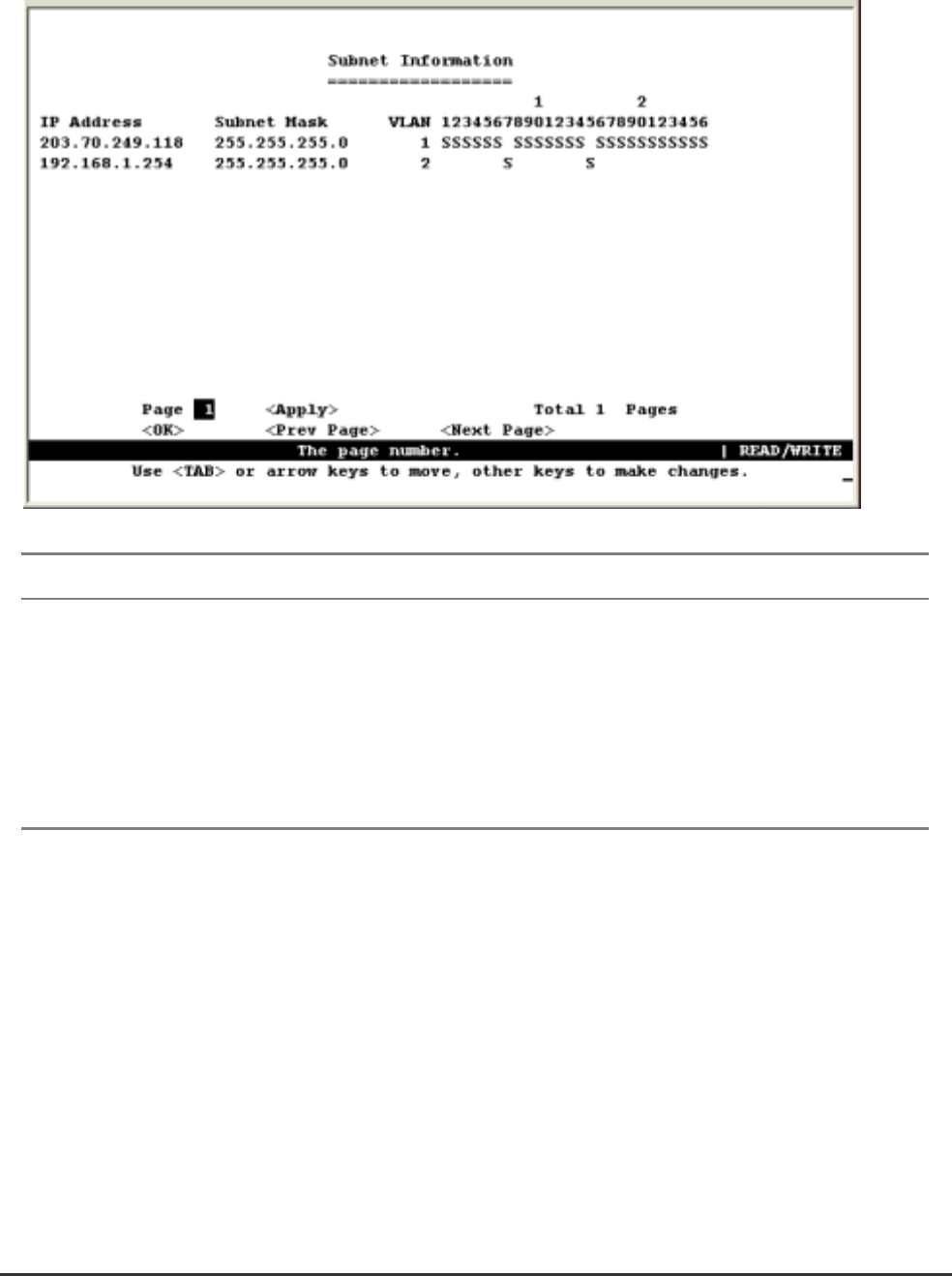

4.6.6.1 Displaying Subnet Information
You can display a list of all the IP interfaces configured on this switch. This table includes the gateway
address, corresponding VLAN, and member ports that use this address.
Parameter Description
IP Address The address for an IP interface on this switch.
Subnet Mask A template that identifies the address bits in the host address used for routing to
specific subnets. Each bit that corresponds to a “1” is part of the network / subnet
number; and each bit that corresponds to “0” is part of the host number.
VLAN The VLAN group associated with this IP interface.
(Port Members) The ports that can be reached through this IP interface.
