4.6.6 IP Address Table

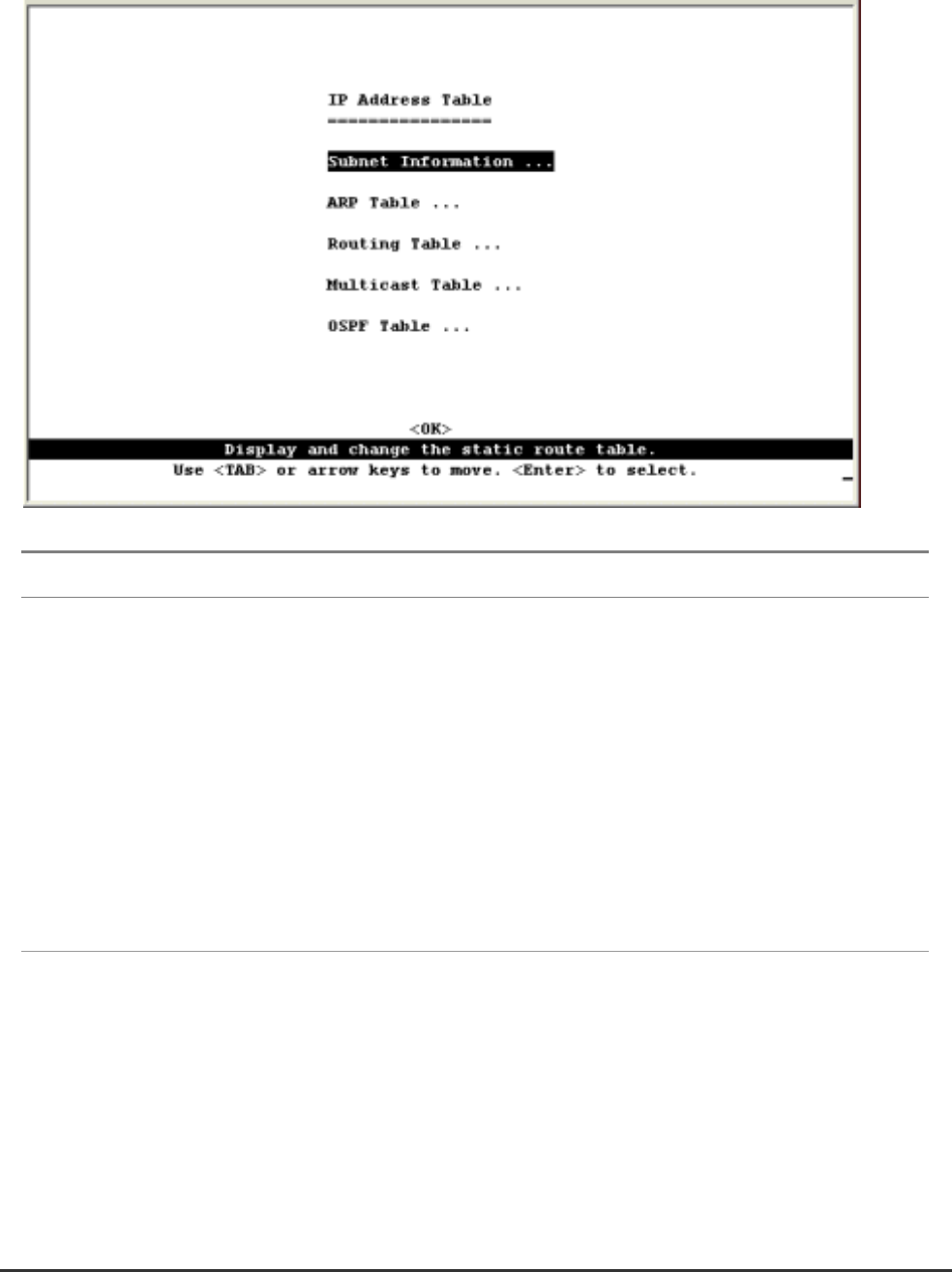

This menu contains IP subnet information, the ARP cache, routing table, as well as multicast groups and
multicast routing information.
Menu Description
Subnet
Information
Displays a list of all the IP interfaces configured on this switch.
ARP Table Shows the IP-to-MAC addresses discovered by ARP.
Routing Table Shows the routes through which all recognized Ethernet networks (and the
corresponding VLAN) can be reached.
Multicast Table Displays all the multicast groups active on this switch, including the multicast IP
address and the corresponding VLANs. Also includes the IGMP registration table, the
multicast forwarding cache, and DVMRP routing information.
OSPF Table Displays a link state advertisement summary, the neighbor table, and the virtual
neighbor table.
