WGS3 Layer 3 Switch User’s Manual
- 92 -

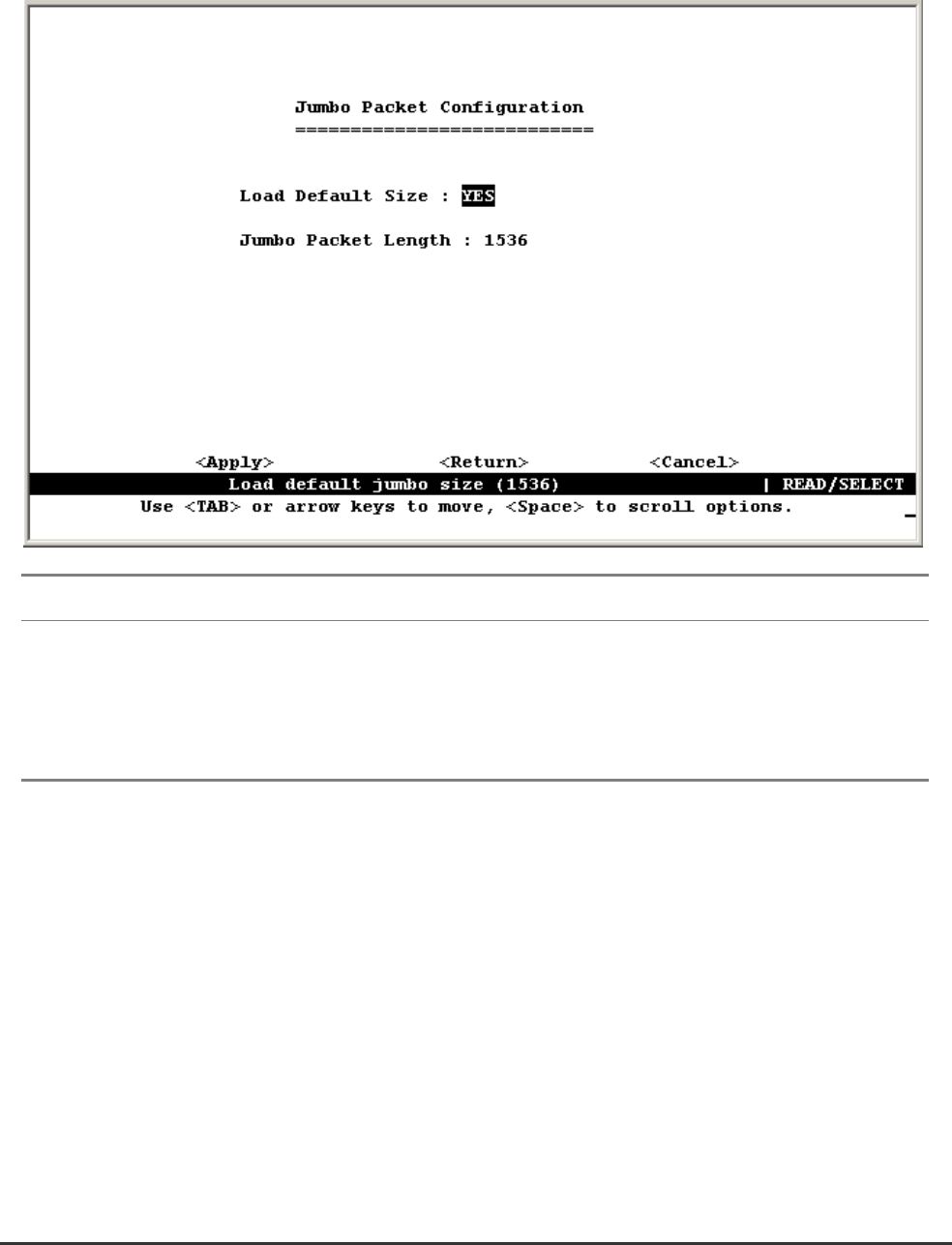

4.5.8 Jumbo Packet Configuration
This menu is only available for WGS3-404. In general, Ethernet only allow maximum 1518 bytes packet
size. This option allow the switch to transmit up to 9216 bytes packet size to increase data transmission
efficiency.
Parameter Default Description
Load Default Size YES Select YES to use default packet size: 1536. To enable Jumbo
Packet function, Toggle it to NO.
Jumbo Packet
Size
1536 Specify the maximum packet size allowed on this switch.
Range: 1536 to 9216
