4.5.5 LACP statistics
This page provides an overview for LACP statistics for all ports.

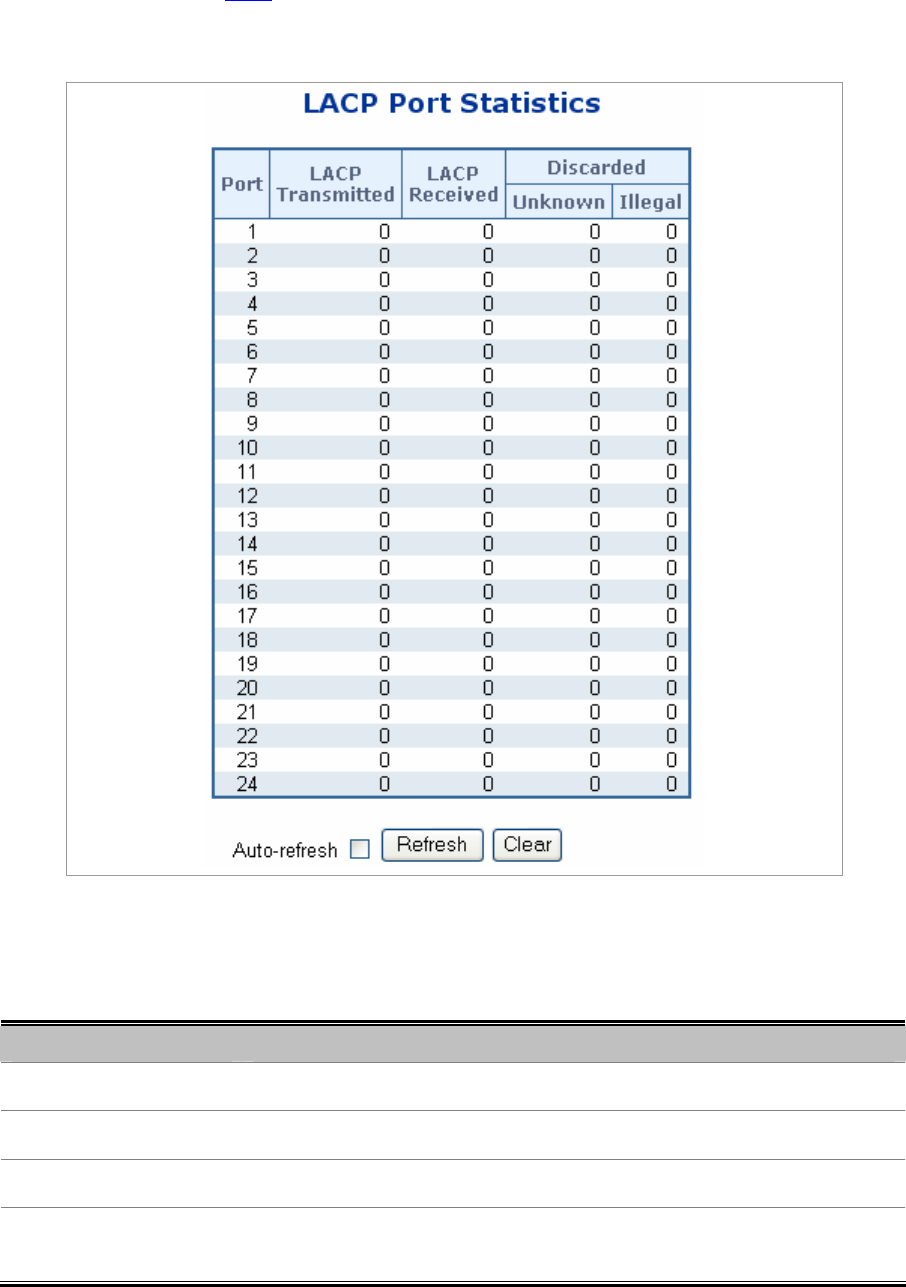

The LACP statistics screen in Figure 4-5-7 appears.
Figure 4-5-7 LACP Port statistics page screenshot
The page includes the following fields:
Object Description
• Port
The switch port number.
• LACP Transmitted
Shows how many LACP frames have been sent from each port.
• LACP Received
Shows how many LACP frames have been received at each port.
• Discarded
Shows how many unknown or illegal LACP frames have been discarded at each
port.
