User’s Manual of WGSW-24040 Series
SGSW-24040/24240 Series
92
each second, while Passive will wait for a LACP packet from a partner (speak if
spoken to).
4.5.3 LACP System Status
This page provides a status overview for all LACP instances. The LACP Status page display the current LACP aggregation
Groups and LACP Port status . The LACP System Status screen in Figure 4-5-5 appears.

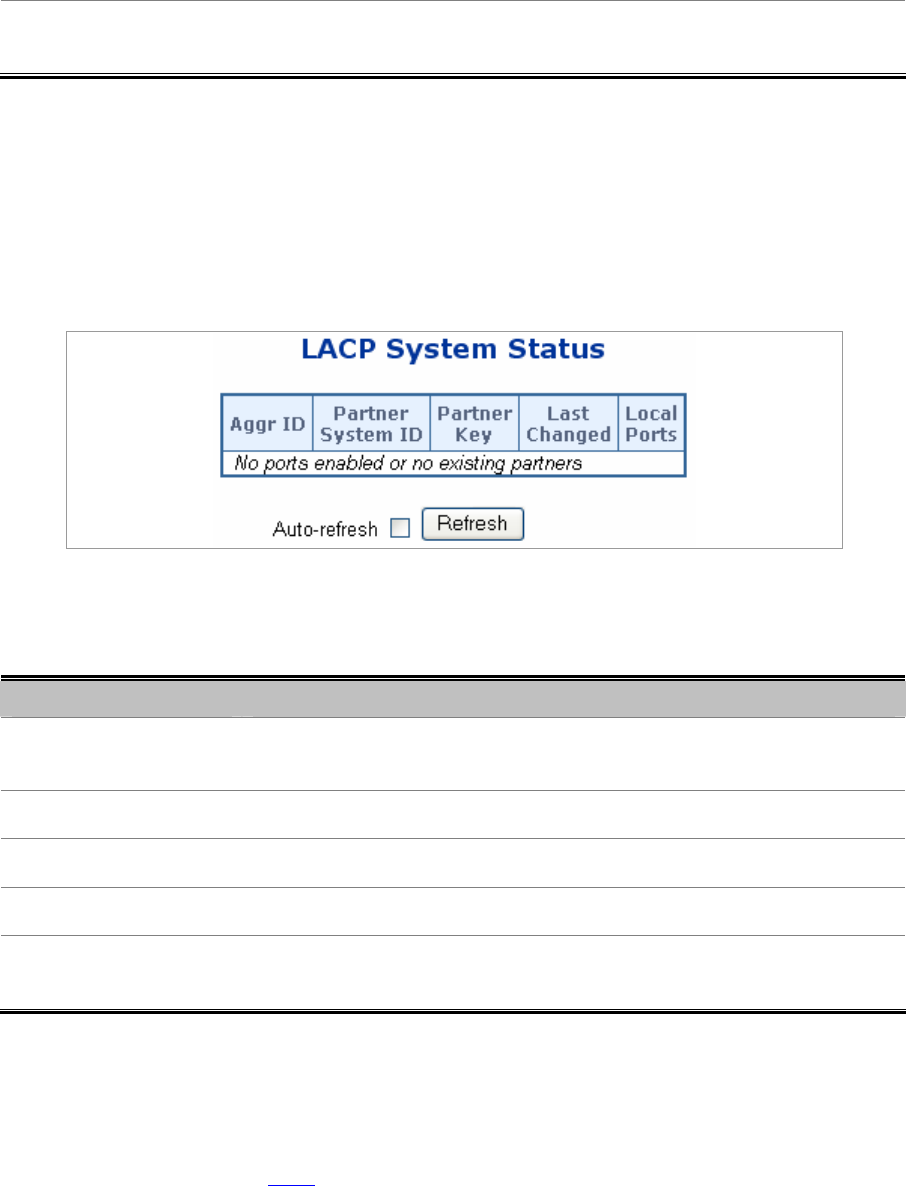

Figure 4-5-5 LACP System Status page screenshot
The page includes the following fields:
Object Description
• Aggr ID
The Aggregation ID associated with this aggregation instance.
For LLAG the id is shown as 'isid:aggr-id' and for GLAGs as 'aggr-id'
• Partner System ID
The system ID (MAC address) of the aggregation partner.
• Partner Key
The Key that the partner has assigned to this aggregation ID.
• Last changed
The time since this aggregation changed.
• Local Ports
Shows which ports are a part of this aggregation for this switch/stack.
The format is: "Switch ID:Port".
4.5.4 LACP Port Status
This page provides a status overview for LACP status for all ports.
The LACP Port Status screen in Figure 4-5-6 appears.
