User’s Manual of WGSW-24040 Series
SGSW-24040/24240 Series
81
• Enabled: Link up and link down power savings enabled.
• Total Power Usage
Total power usage in board, measured in percent.
When set each port to run at 100M Full, 100M Half, 10M Full, and 10M Half-speed modes. The
Auto-MDIX function will disable.
4.4.2 Port Statistics Overview
This page provides an overview of general traffic statistics for all switch ports. The ports belong to the currently selected stack
unit, as reflected by the page header.

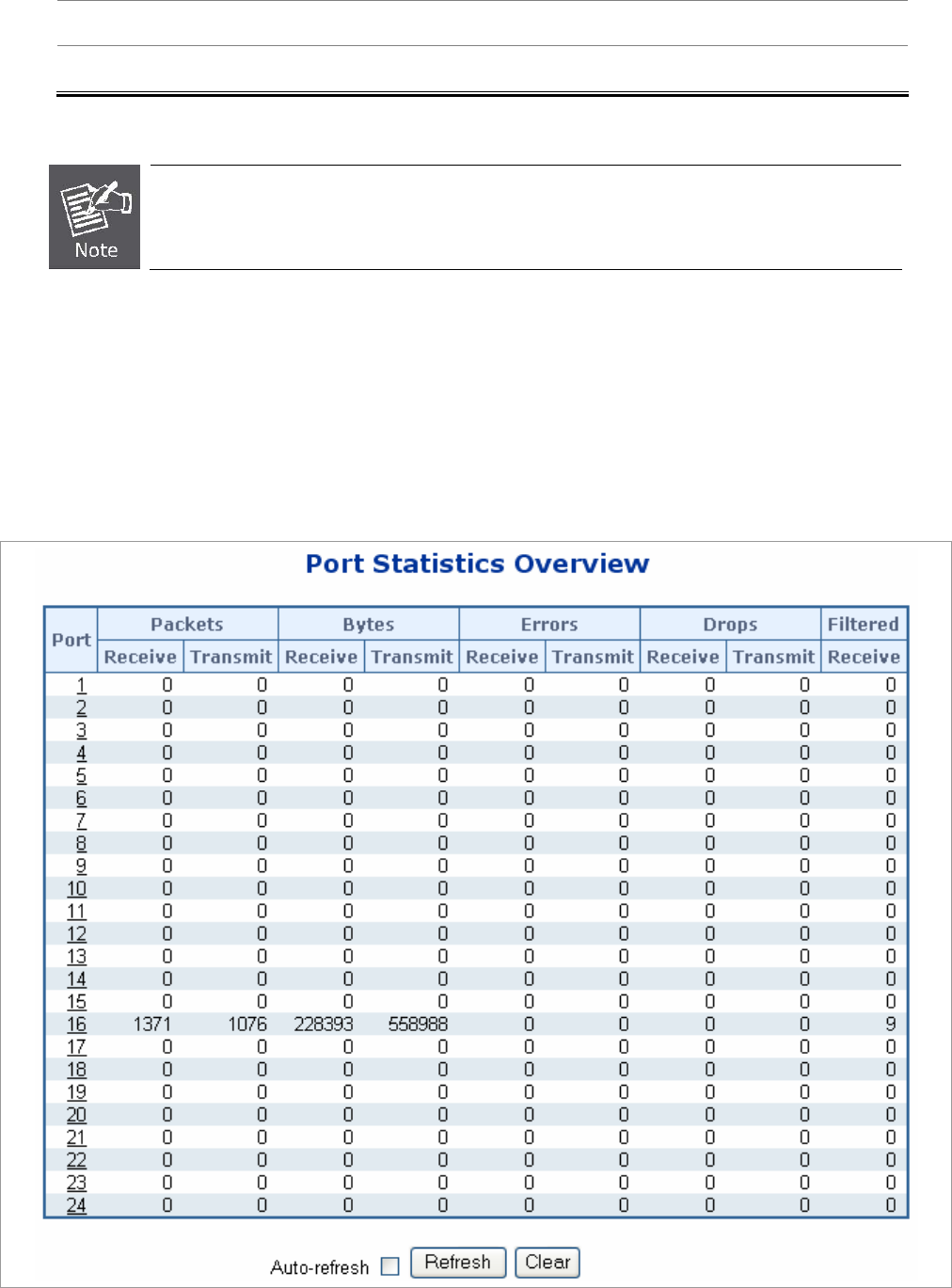

The Port Statistics Overview screen in Figure 4-4-2 appears.
Figure 4-4-2 Port Statistics Overview page screenshot
