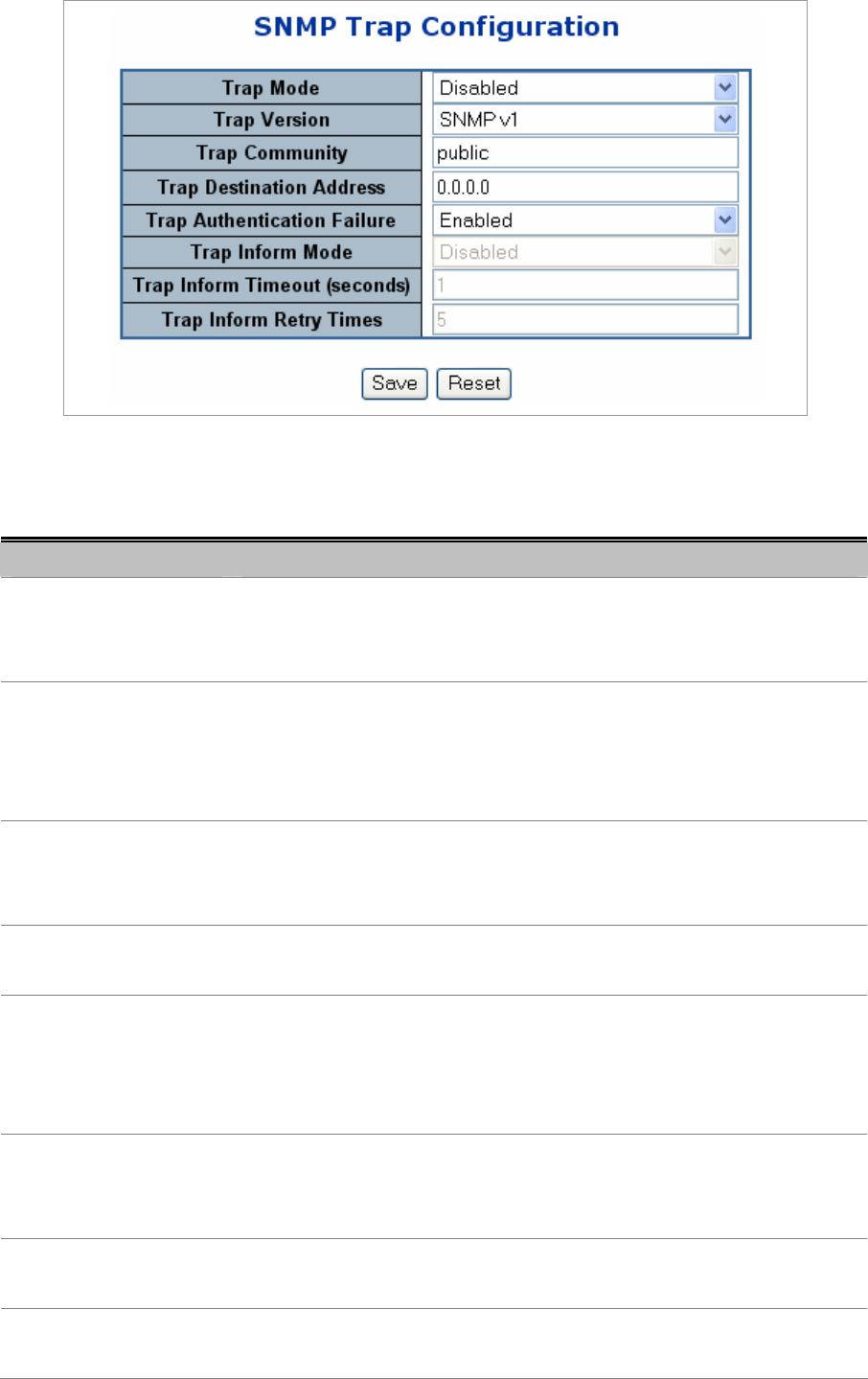

Figure 4-3-3 SNMP Trap Configuration page screenshot
The page includes the following fields:
Object Description
• Trap Mode
Indicates the SNMP trap mode operation. Possible modes are:
• Enabled: Enable SNMP trap mode operation.
• Disabled: Disable SNMP trap mode operation.
• Trap Version
Indicates the SNMP trap supported version. Possible versions are:
• SNMP v1: Set SNMP trap supported version 1.
• SNMP v2c: Set SNMP trap supported version 2c.
• SNMP v3: Set SNMP trap supported version 3.
• Trap Community
Indicates the community access string when send SNMP trap packet. The
allowed string length is 0 to 255, and the allowed content is the ASCII characters
from 33 to 126.
• Trap Destination
Address
Indicates the SNMP trap destination address.
• Trap Authentication
Failure
Indicates the SNMP entity is permitted to generate authentication failure traps.
Possible modes are:
• Enabled: Enable SNMP trap authentication failure.
• Disabled: Disable SNMP trap authentication failure.
• Trap Inform Mode
Indicates the SNMP trap inform mode operation. Possible modes are:
• Enabled: Enable SNMP trap inform mode operation.
• Disabled: Disable SNMP trap inform mode operation.
• Trap Inform Timeout
(seconds)
Indicates the SNMP trap inform timeout. The allowed range is 0 to 2147.
• Trap Inform Retry
Times
Indicates the SNMP trap inform retry times. The allowed range is 0 to 255.
