User’s Manual of WGSW-24040 Series
SGSW-24040/24240 Series
68
4.2.10 System Reboot
The Reboot page enables the device to be rebooted from a remote location. Once the Reboot button is pressed, user have to
re-login the WEB interface about 60 seconds later, the screen in Figure 4-2-16 appears.

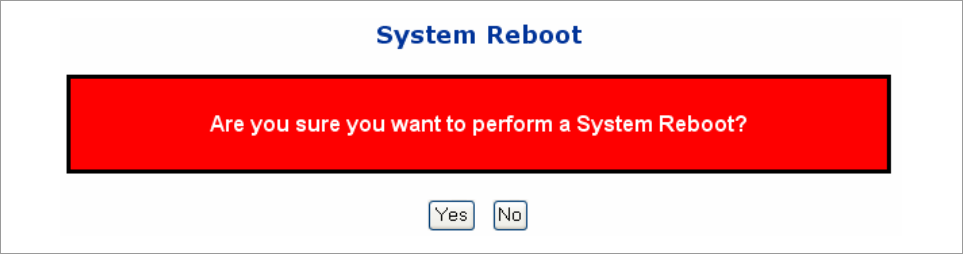

Figure 4-2-16 System Reboot page screenshot
You can also check the SYS LED at the front panel to identify the System is load completely or not. If the SYS LED is blinking,
then it is in the firmware load stage; if the SYS LED light on, you can use the WEB browser to login the Switch.
