User’s Manual of WGSW-24040 Series
SGSW-24040/24240 Series
67
4.2.9 Factory Default
The Factory Reset button can reset the Managed Switch back to the factory default mode. Be aware that the entire configuration
will be reset; include the IP address of the Managed Switch. Once the Factory Reset item is pressed, the screen in Figure
4-2-15 appears.

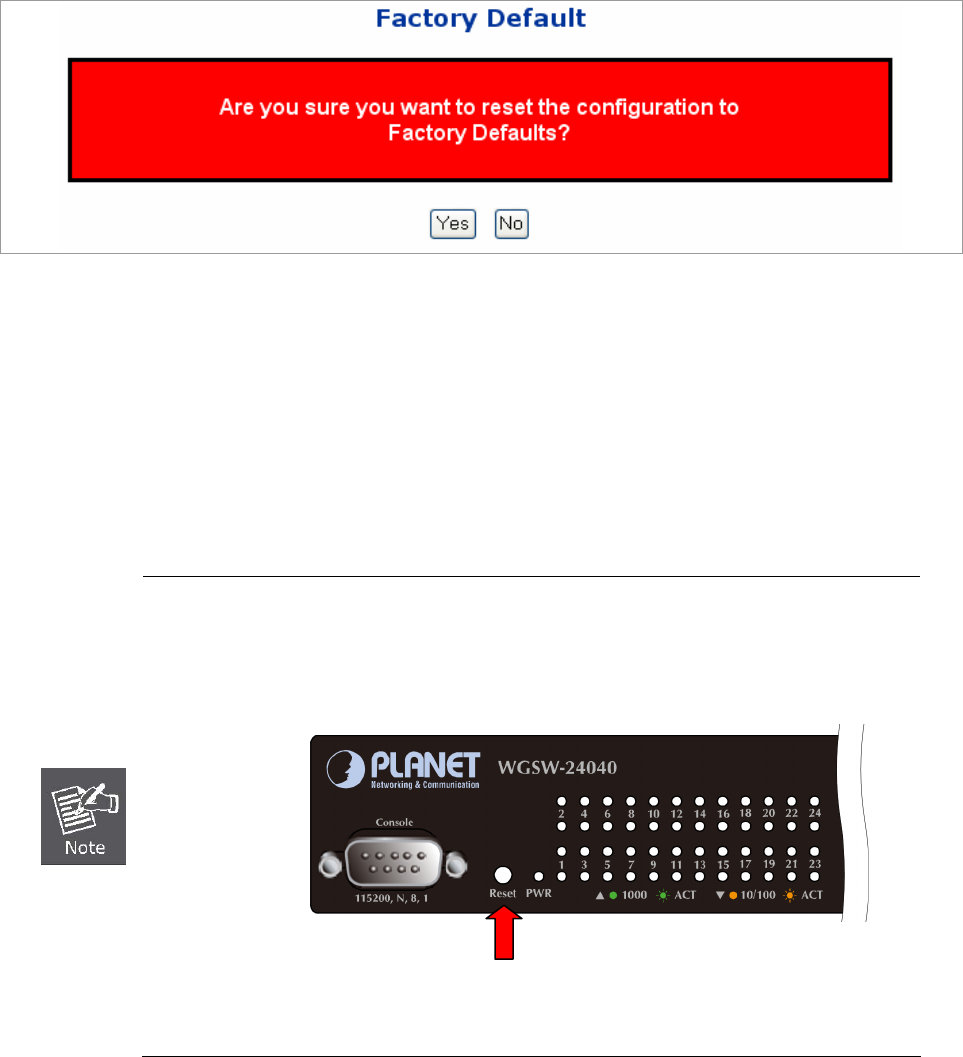

Figure 4-2-15 Factory Default Reset screen
After the “Factory” button be pressed and rebooted, the system will load the default IP settings as following:
。 Default IP address: 192.168.0.100
。 Subnet mask: 255.255.255.0
。 Default Gateway: 192.168.0.254
。 The other setting value is back to disable or none.
To reset the Managed Switch to the Factory default setting, you can also press the hardware
reset button at the front panel about 10 seconds. After the device be rebooted. You can login the
management WEB interface within the same subnet of 192.168.0.xx.
Hardware Reset button
