User’s Manual of WGSW-24040 Series
SGSW-24040/24240 Series
58
4.2.2 IP Configuration
The IP Configuration includes the IP Address, Subnet Mask and Gateway. The Configured column is used to view or change the
IP configuration.Fill up the IP Address, Subnet Mask and Gateway for the device. The screen in Figure 4-2-2 appears.

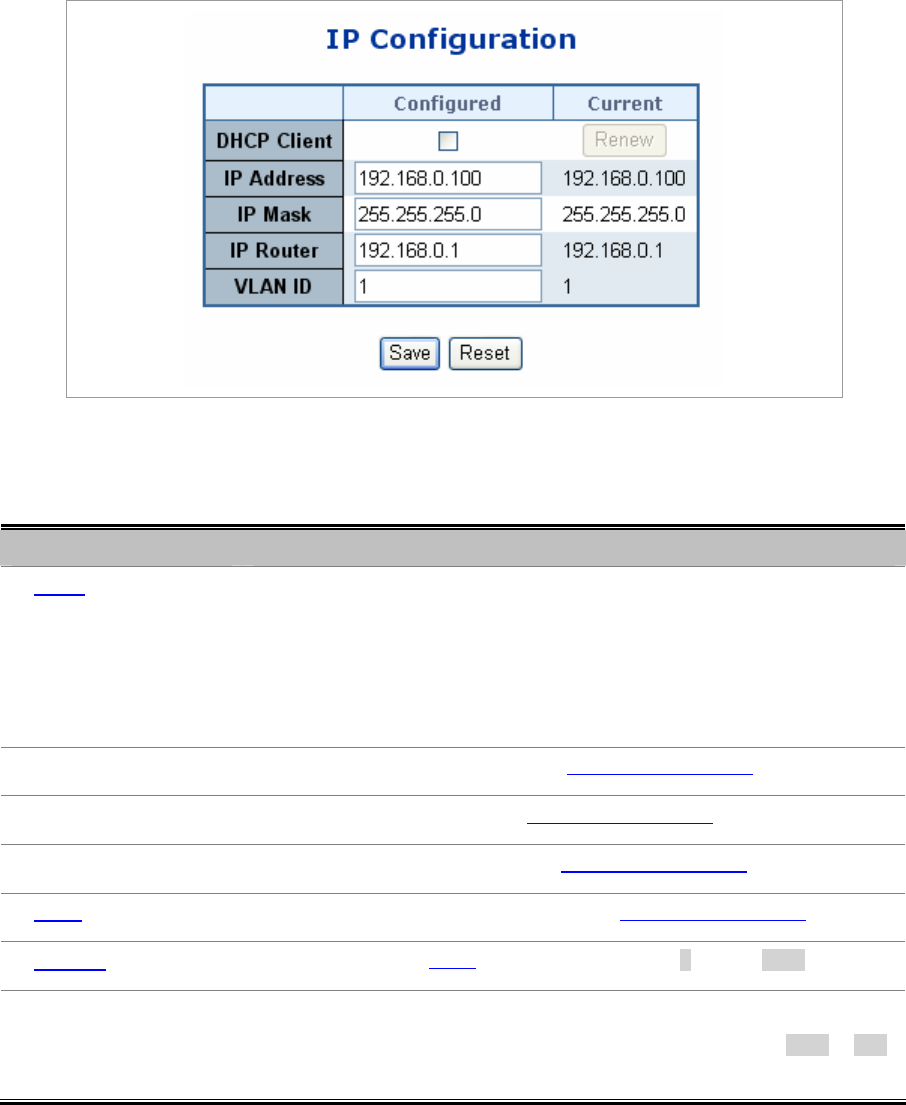

Figure 4-2-2 IP Configuration page screenshot
The Current column is used to show the active IP configuration.
Object Description
• DHCP Client
Enable the DHCP client by checking this box. If DHCP fails and the configured IP
address is zero, DHCP will retry. If DHCP fails and the configured IP address is
non-zero, DHCP will stop and the configured IP settings will be used. The DHCP
client will announce the configured System Name as hostname to provide DNS
lookup.
• IP Address
Provide the IP address of this switch in dotted decimal notation
.
• IP Mask
Provide the IP mask of this switch dotted decimal notation
.
• IP Router
Provide the IP address of the router in dotted decimal notation
.
• SNTP Server
Provide the IP address of the SNTP Server in dotted decimal notation
.
• VLAN ID
Provide the managed VLAN ID. The allowed range is 1 through 4095.
• Timezone Offset
Provide the timezone offset relative to UTC/GMT.
The offset is given in minutes east of GMT. The valid range is from -720 to 720
minutes.
Buttons
