User’s Manual of WGSW-24040 Series
SGSW-24040/24240 Series
54
Main Menu
Using the onboard web agent, you can define system parameters, manage and control the Managed Switch, and all its ports, or
monitor network conditions. Via the Web-Management, the administrator can setup the Managed Switch by select the functions
those listed in the Main Function. The screen in Figure 4-1-5 appears.

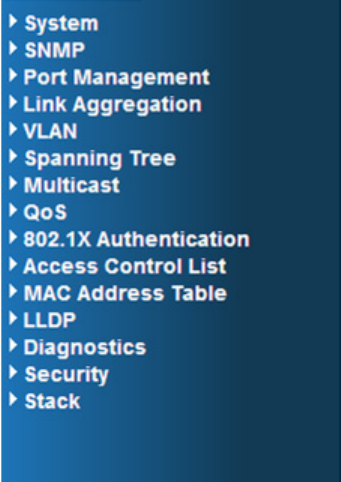

Figure 4-1-5 WGSW/SGSW Managed Switch Main Funcrions Menu
