User’s Manual of WGSW-24040 Series
SGSW-24040/24240 Series
53
4.1 Main WEB PAGE
The WGSW / SGSW Managed Switch provides a Web-based browser interface for configuring and managing it. This interface
allows you to access the Managed Switch using the Web browser of your choice. This chapter describes how to use the
Managed Switch’s Web browser interface to configure and manage it.

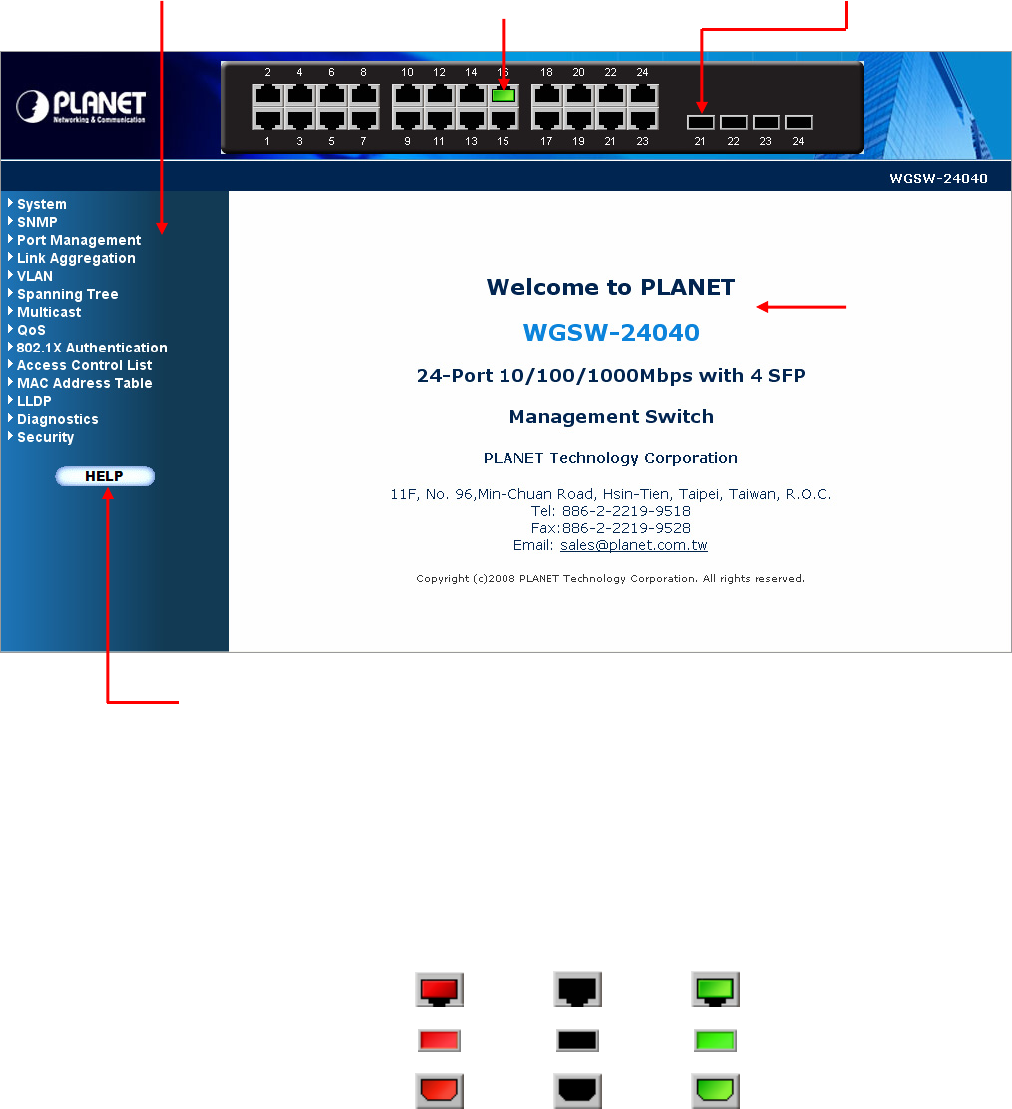

Figure 4-1-4 Main Page
Panel Display
The web agent displays an image of the Managed Switch’s ports. The Mode can be set to display different information for the
ports, including Link up or Link down. Clicking on the image of a port opens the Port Statistics page.
The port states are illustrated as follows:
State Disabled Down Link
RJ-45 Ports
SFP Ports
Stack Ports
Main Functions Menu SFP Port Link Status
Main Screen
Help Button
Copper Port Link Status
