STEP-5: Once the stack start operation, the Stack master be automatically elected without any configure. The Stack master is
indicated by a lit green “Master” LED on the front panel. As the Figure 2-19 appears.
Figure 2-27 Stack Master with “Master” LED lit
STEP-6: When a SGSW Switch is added to the stack, a Switch ID is automatically assigned to the SGSW Switch. The
automatic SID assignment can be modified by choosing a different Switch ID on the Stack Configuration page. This
method allows Switch IDs to be assigned so that it is easier for the user to remember the ID of each switch.
STEP-7: Connect the RS-232 serial cable to the console port on the front of the stack master, then loin the SGSW Switch to
start the switch management. Or you can use the PLANET Smart Discovery Utility to displayt the IP address of the
stack and Web login the stack with this IP address. The default IP address of the SGSW Switch is 192.168.0.100.

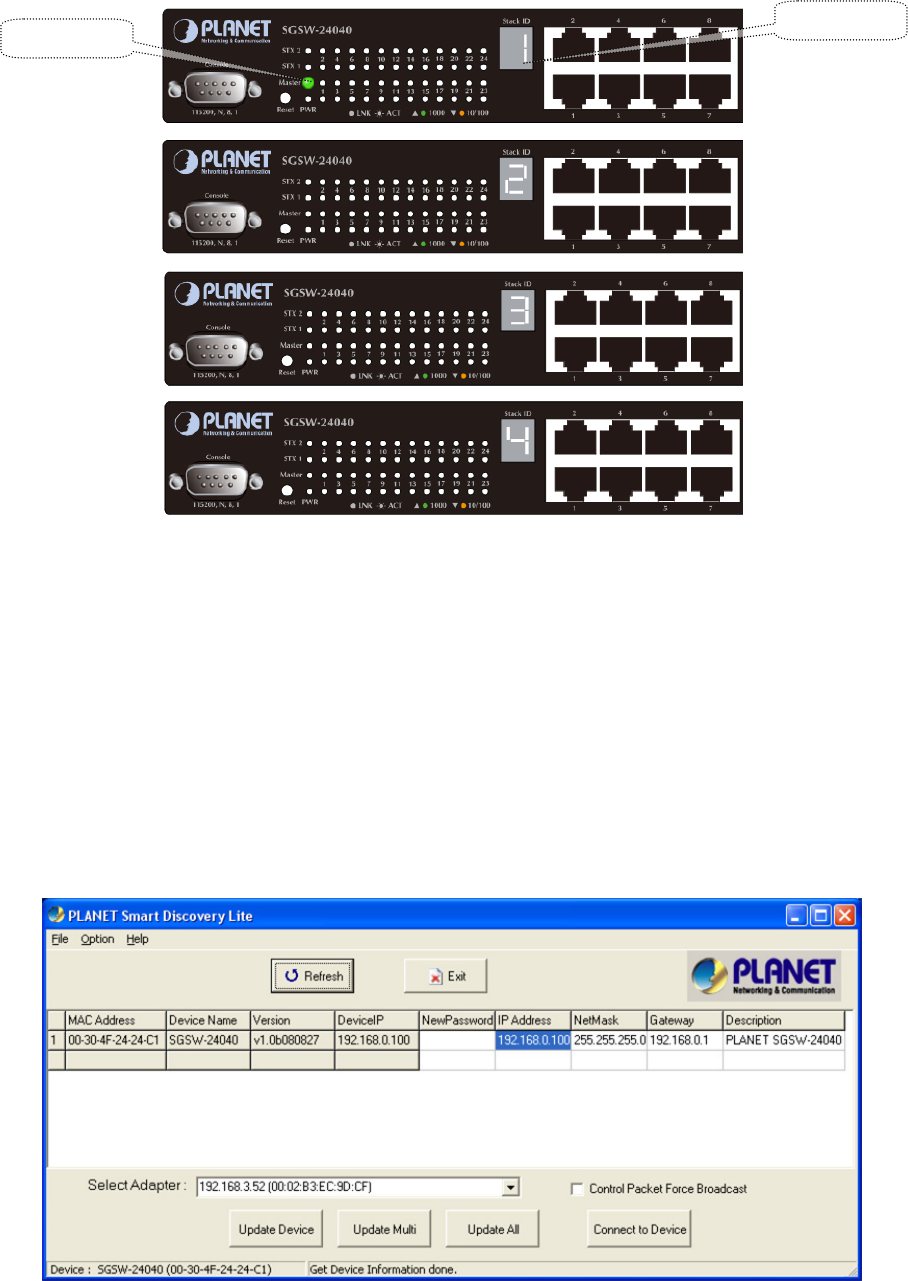

Figure 2-28 Use PLANET Smart Discovery Utility to display the IP address of stack master
Master LED
Stack ID
