User’s Manual of WGSW-24040 Series
SGSW-24040/24240 Series
40
2.3 Stack Installation
SGSW-24040 / SGSW-24040R
The SGSW-24040 series Managed Switch provides a switch stacking function to manage up to 16 switches using a single IP
address. And up to 384 Gigabit Ethernet ports can be managed by a stacking group and you can add ports and functionality as
needed. You can add SGSW-24040 series switches as needed to support more network clients, knowing that your switching
fabric will scale to meet increasing traffic demands.
Two types of stack topologies are supported by the SGSW-24040 series:
Chain topology (same as a disconnected ring)
Ring topology
Please find the following picture for sample connection.

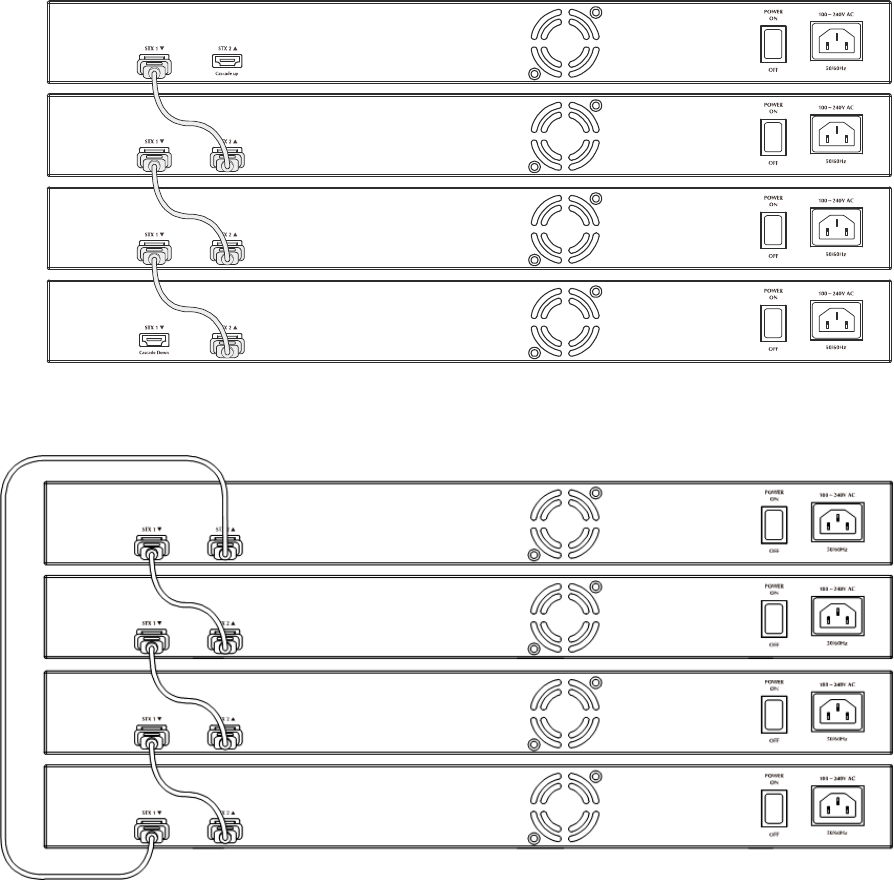

Figure 2-24 Chain Stack topology
Figure 2-25 Ring Stack topology
