User’s Manual of WGSW-24040 Series
SGSW-24040/24240 Series
222
terminal-emulation program for connecting to the terminal serial port. A workstation attachment under UNIX can use an emulator
such as TIP

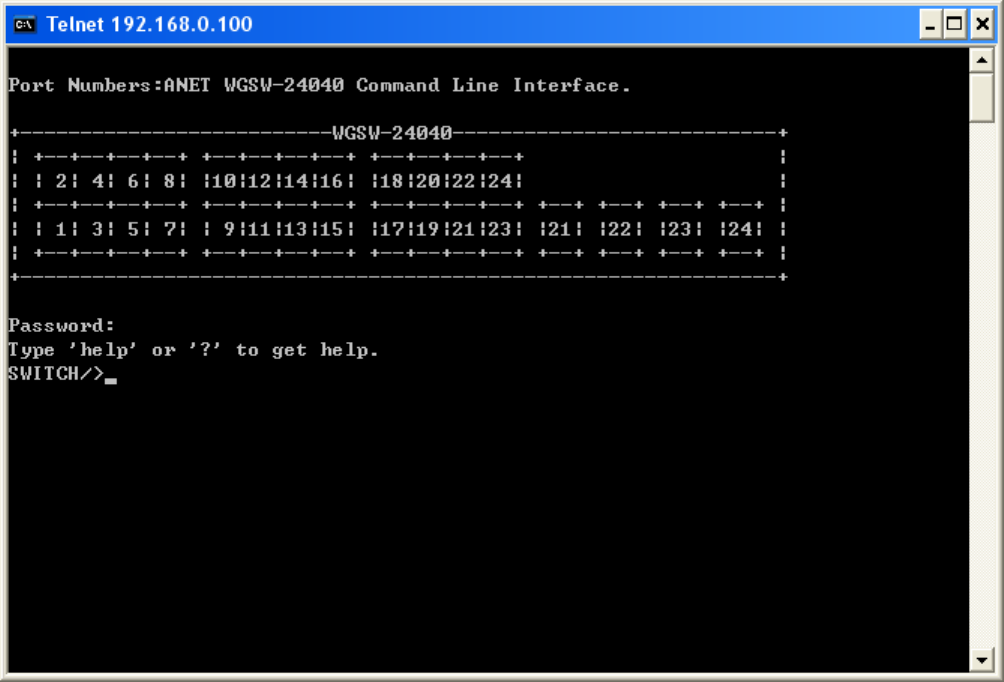

5.2 Telnet login
The Managed Switch also supports telnet for remote management. The switch asks for user name and password for remote
login when using telnet, please use “admin” for password.
