User’s Manual of WGSW-24040 Series
SGSW-24040/24240 Series
220
1. For security reason, please change and memorize the new password after this first setup.
2. Only accept command in lowercase letter under console interface.
Configure IP address
The WGSW / SGSW Managed Switch is shipped with default IP address as following.
IP Address : 192.168.0.100
Subnet Mask : 255.255.255.0
To check the current IP address or modify a new IP address for the Switch, please use the procedures as follow:
Show the current IP address
1. On ”Switch/> ” prompt, enter “show ip”.
2. The screen displays the current IP address, Subnet Mask and Gateway. As show in Figure 5-2.

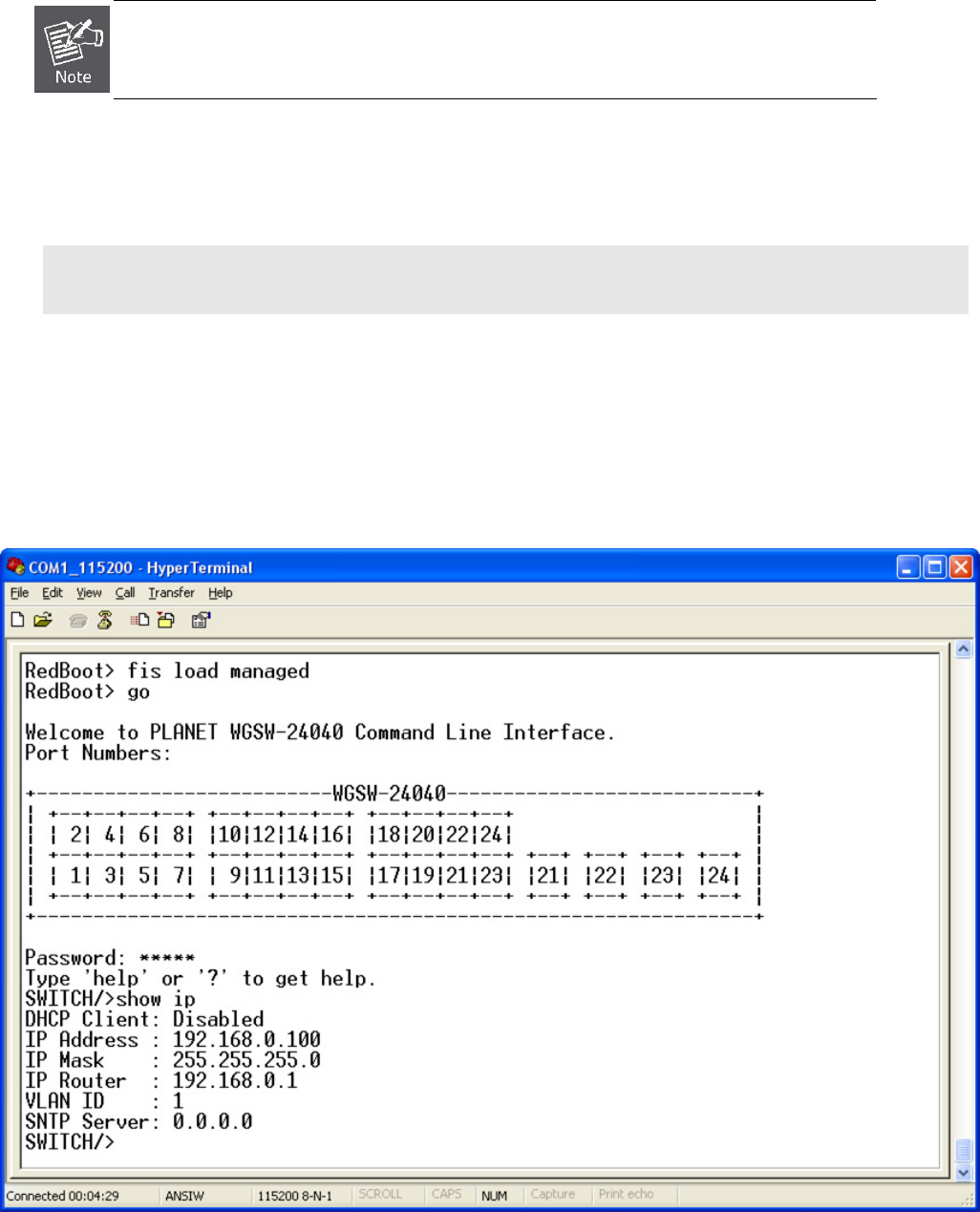

Figure 5-2 Show IP information screen
Configure IP address
