User’s Manual of WGSW-24040 Series
SGSW-24040/24240 Series
219
5. COMMAND LINE INTERFACE
5.1 Accessing the CLI
When accessing the management interface for the switch over a direct connection to the server’s console port, or via a Telnet
connection, the switch can be managed by entering command keywords and parameters at the prompt. Using the switch's
command-line interface (CLI) is very similar to entering commands on a UNIX system.
This chapter describes how to use the Command Line Interface (CLI).
Logon to the Console
Once the terminal has connected to the device, power on the WGSW / SGSW Managed Switch, the terminal will display that it is
running testing procedures.
Then, the following message asks the login password. The factory default password as following and the login screen in Figure
5-1 appears.
Password: admin

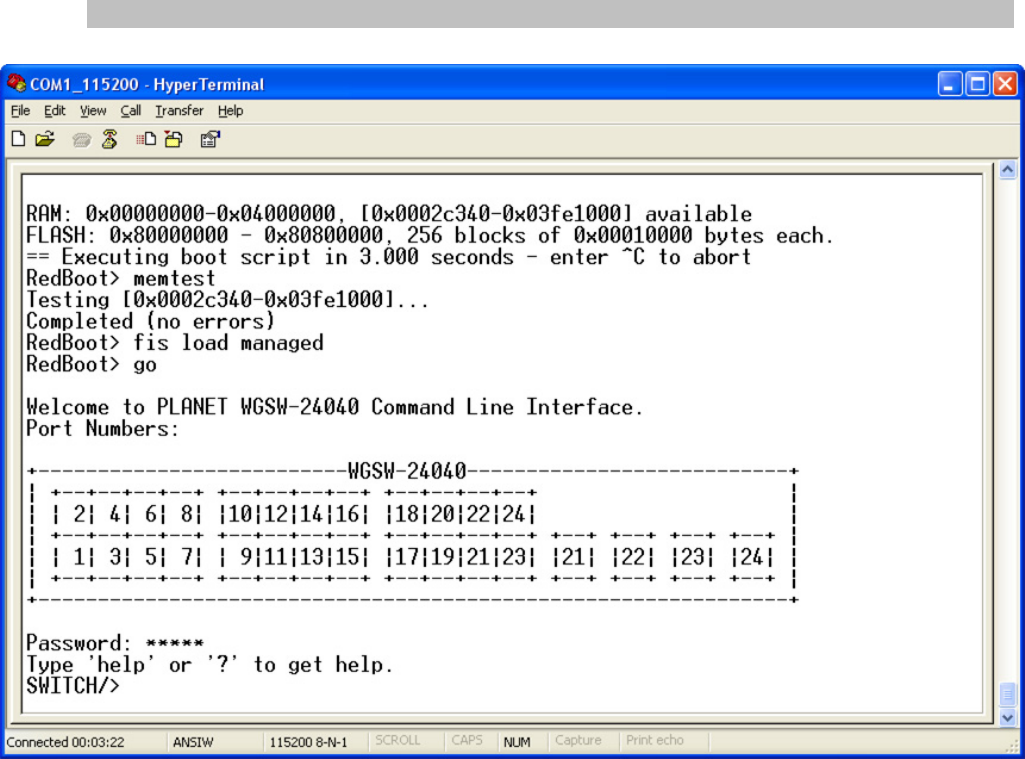

Figure 5-1 WGSW / SGSW Managed Switch Console Login screen
