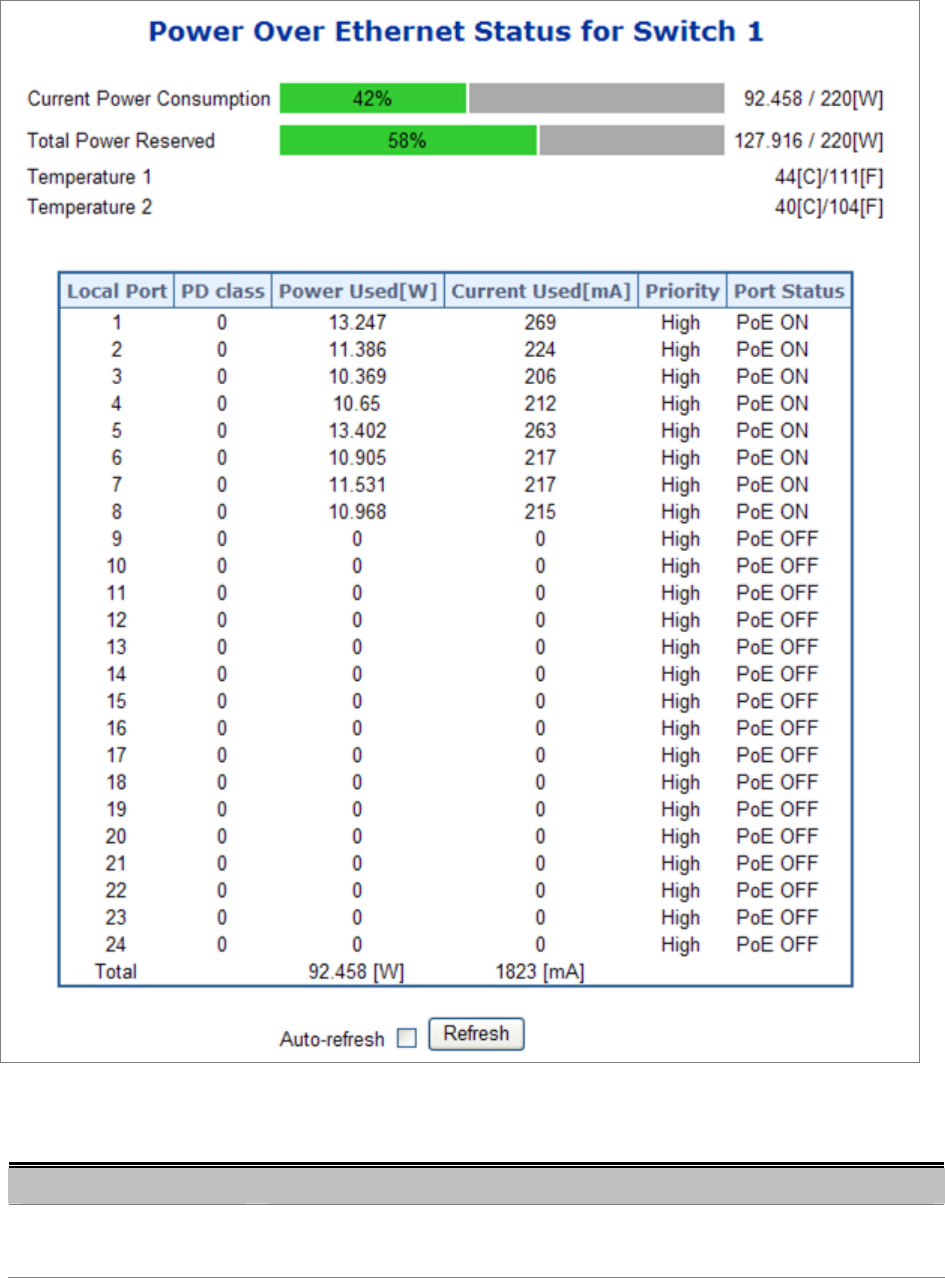

4.17.3 PoE Status
This page allows the user to inspect the total power consumption, total power reserved and current status for all PoE ports.
The page includes the following fields:
Object Description
• Current Power
Consumption
Show the total watts usage of PoE Switch.
