User’s Manual of WGSW-24040 Series
SGSW-24040/24240 Series
214
Ethernet Port Configuration
This section allows the user to inspect and configure the current PoE port settings
, screen in Figure 4-17-2 appears.

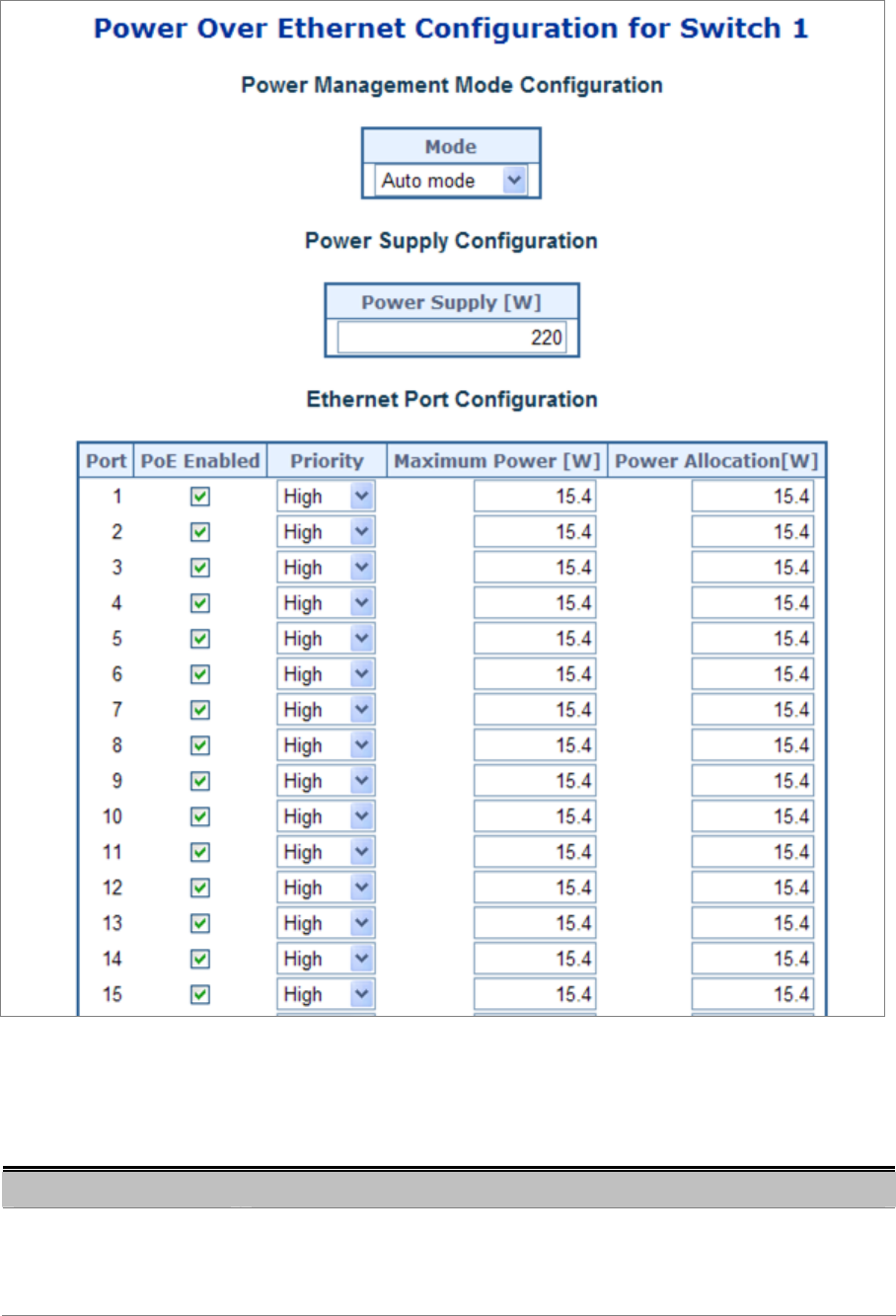

Figure 4-17-2 PoE Configuration screenshot
The page includes the following fields:
Object Description
• Mode
There are five modes for configuring how the ports/PDs may reserve power and
when to shut down ports.
Classification mode
