Reflash the web browser, the switch with MAC address “00-30-4f-24-04-76” become the stack master now.

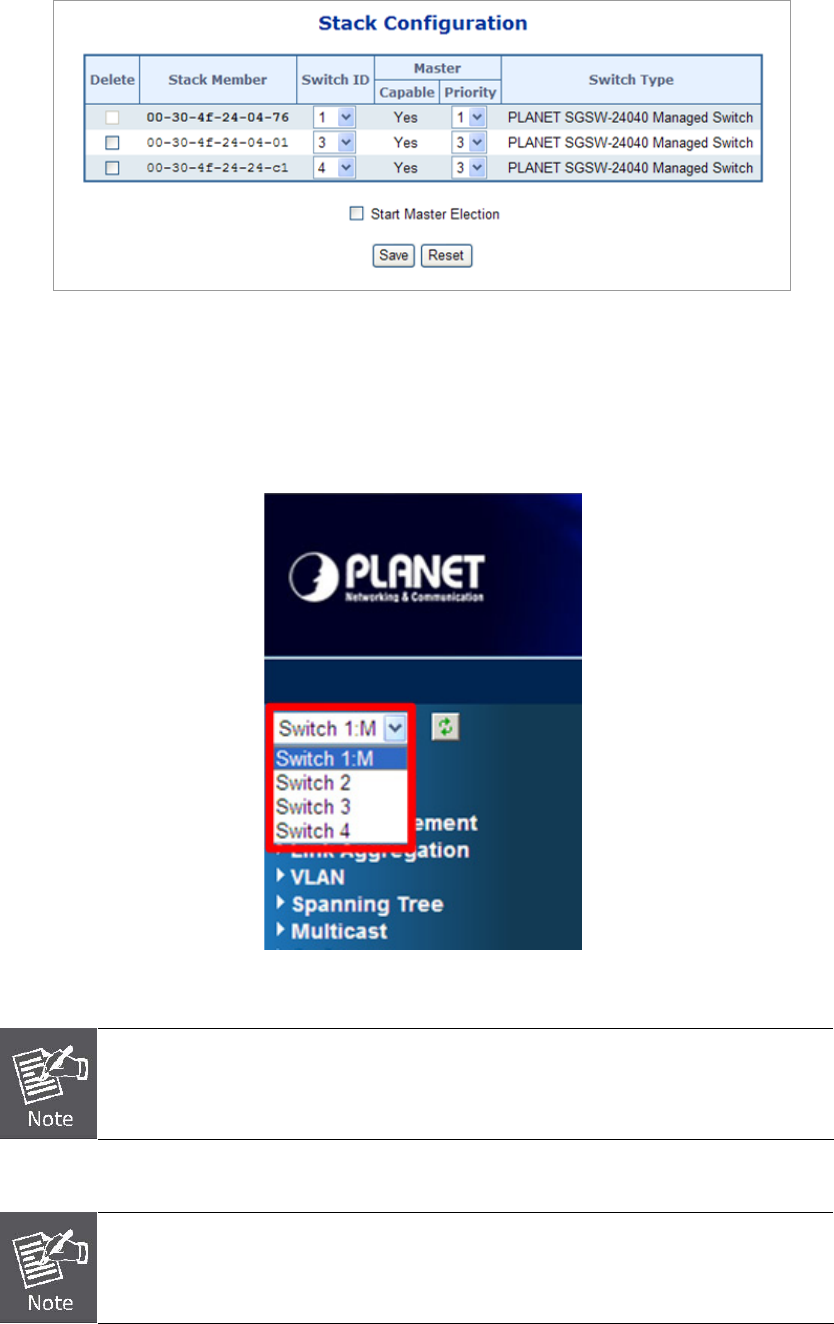

Figure 4-16-14 The result after master election
Step 6: After the Stack Master and Members have been configured, any switch in the stack can be managed from the web
agent by choosing the desired Member ID from the Switch drop down menu.
Figure 4-16-15 To manage the member switch
Slave switch IP will be covered by Master one, and disappear temporarily. The slave IP
address can be the same as Master IP address. Thus, if master switch is malfunction, you
can still access the other switch by same IP address.
If you have difficulty on selecting another switch, you may be connecting to the slave
switch’s web, please close the browser window, use the “arp –d * ” DOS command to clear
the ARP table and then reopen the web.
