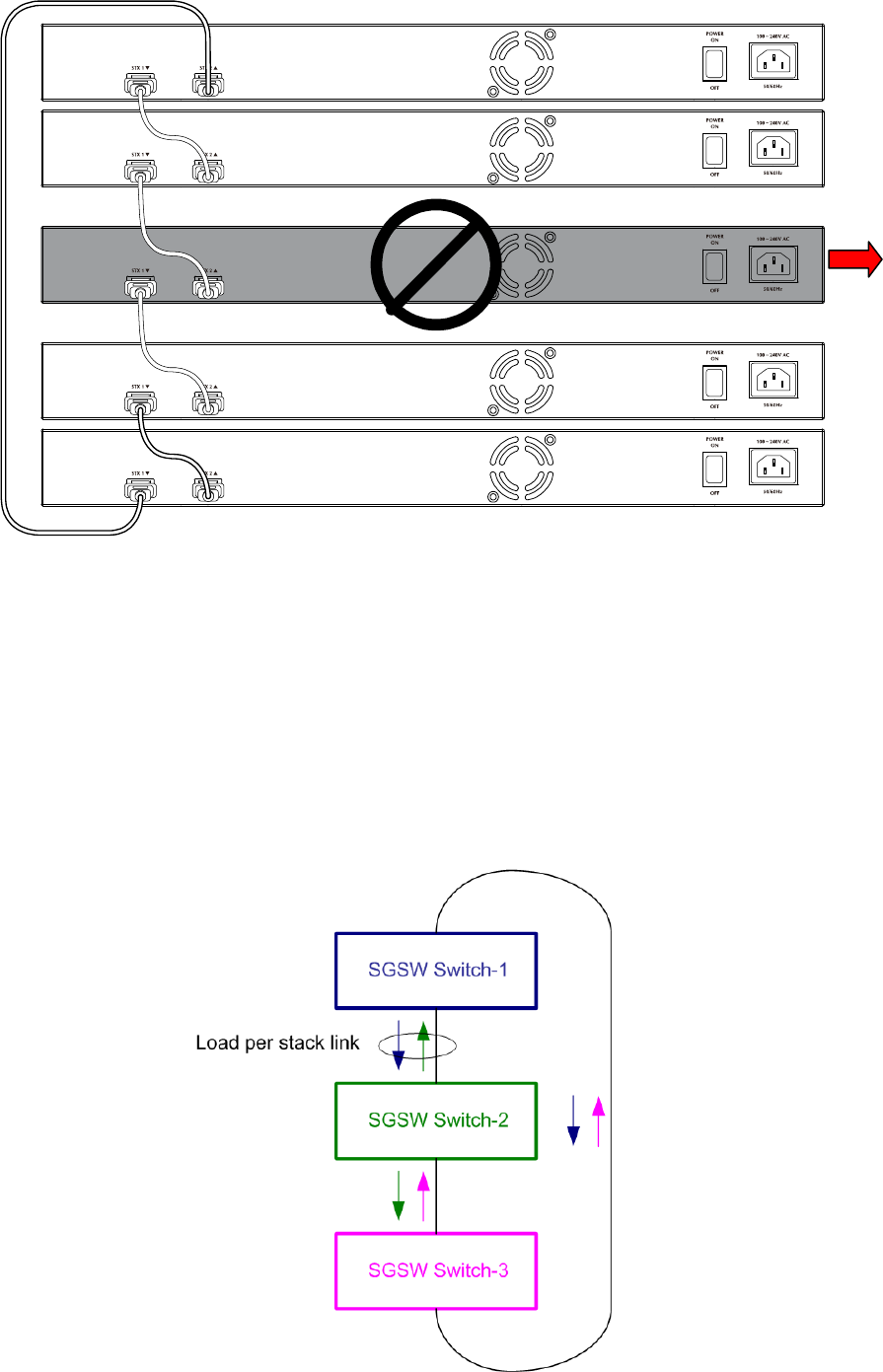

Figure 4-16-4 Remove or Replace a switch from the stack
4.16.1.4 Shortest Path Forwarding
The SGSW Swtich supports shortest path forwarding technology to optimal data flow across the stack. The advantage of
shortest path forwarding as below:
Automatic Loop Prevention – Using Time To Live (TTL) information in the stack-header
Utilize all stack links in the ring.
Figure 4-16-5 True Ring Topology
