Chain Stack: A chain of switches, that is, no redundant forwarding paths.

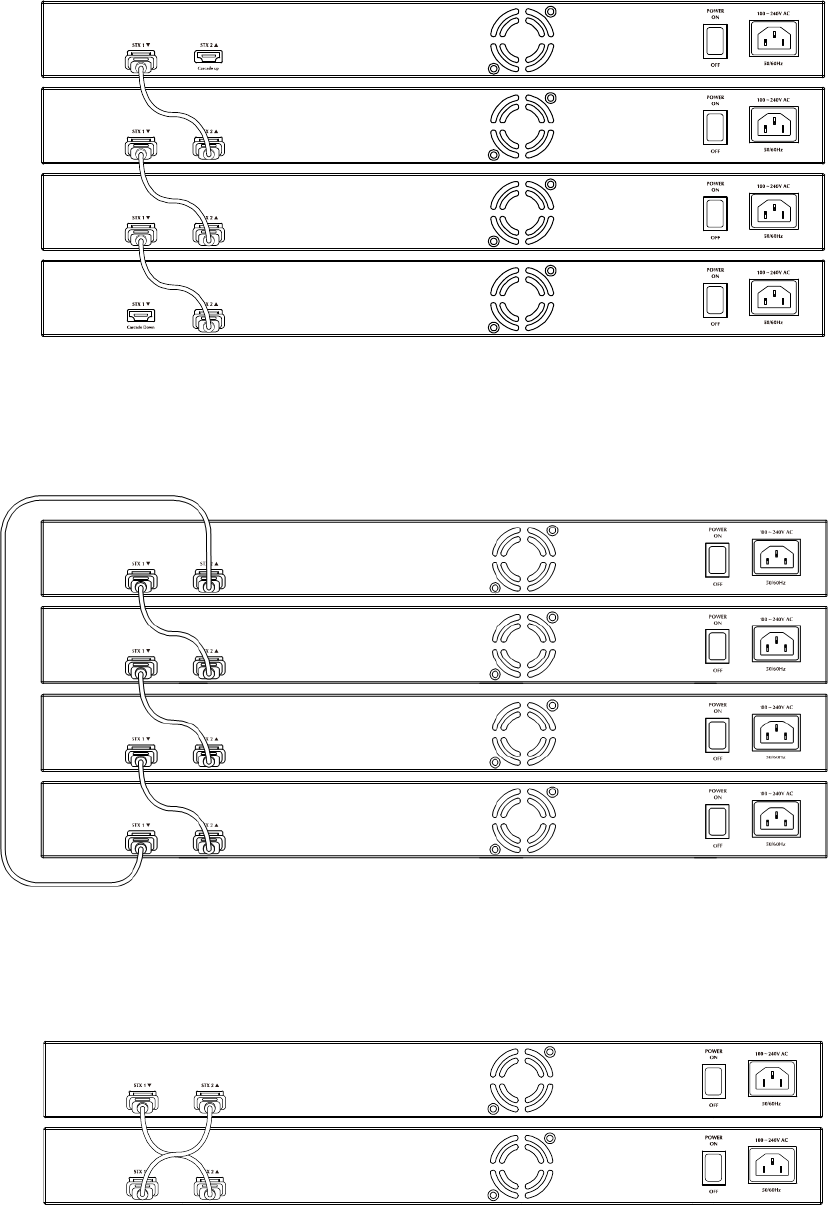

Figure 4-16-1 Chain Stack topology
Ring Stack: A ring of switches, thereby providing redundant forwarding paths.
Figure 4-16-2 Ring Stack topology
Back-to-Back Stack : Two switches interconnected on both stacking ports.
Figure 4-16-3 Back to back Stack topology
