4.14.4 LLDP Statistics
This page provides an overview of all LLDP traffic. Two types of counters are shown. Global counters are counters that refer to
the whole stack, switch, while local counters refers to counters for the currently selected switch. The LLDP Statistics screen in
Figure 4-14-4 appears.

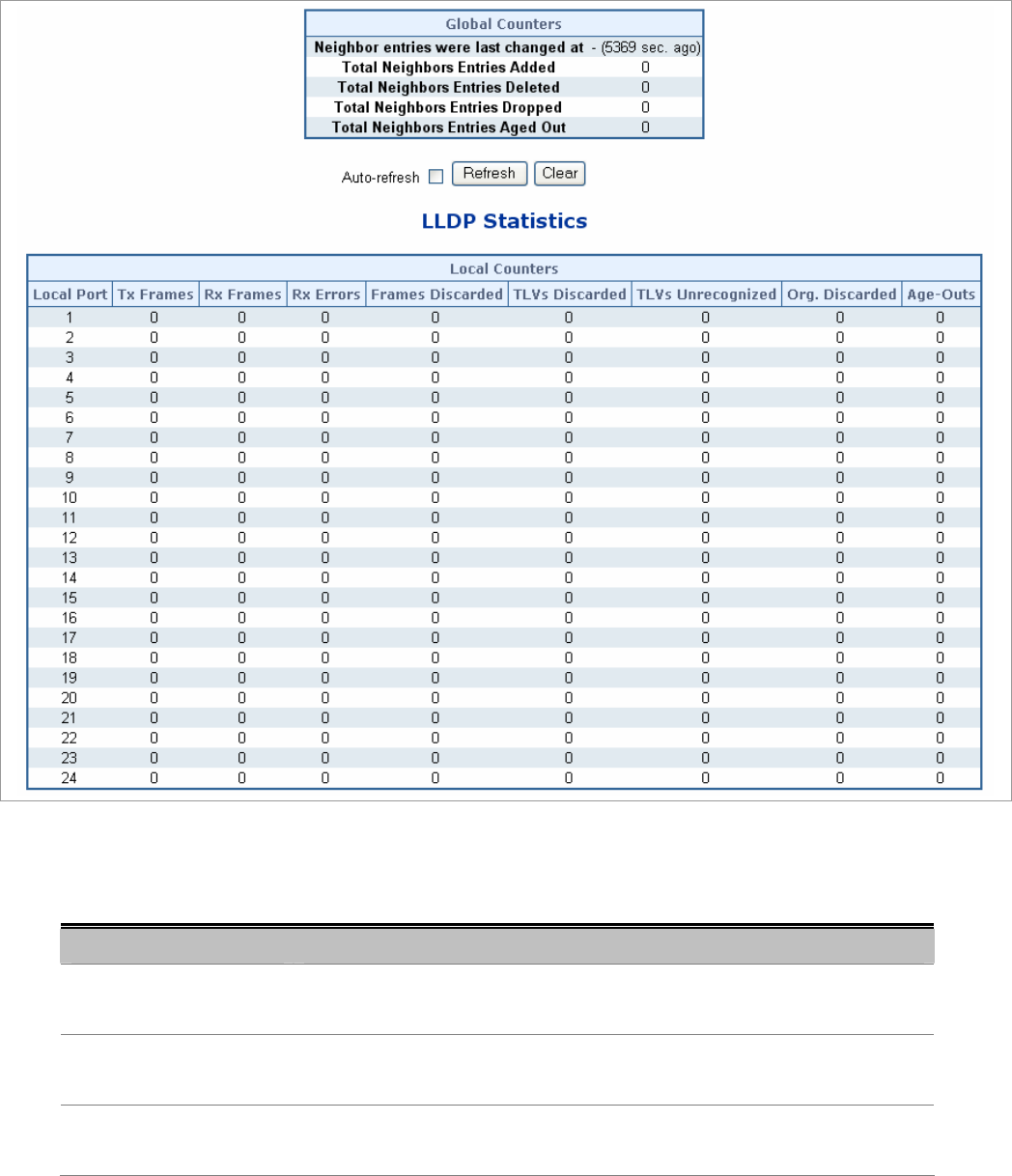

Figure 4-14-4 LLDP Statistics page screenshot
Global Counters
Object Description
• Neighbor entries were
last changed at
Shows the time for when the last entry was last deleted or added. It is also shows
the time elapsed since last change was detected.
• Total Neighbors
Entries Added
Shows the number of new entries added since switch reboot.
• Total Neighbors
Entries Deleted
Shows the number of new entries deleted since switch reboot.
