4.14.3 LLDP Neighbor
This page provides a status overview for all LLDP neighbors. The displayed table contains a row for each port on which an
LLDP neighbor is detected. The LLDP Neighbor screen in Figure 4-14-3 appears.

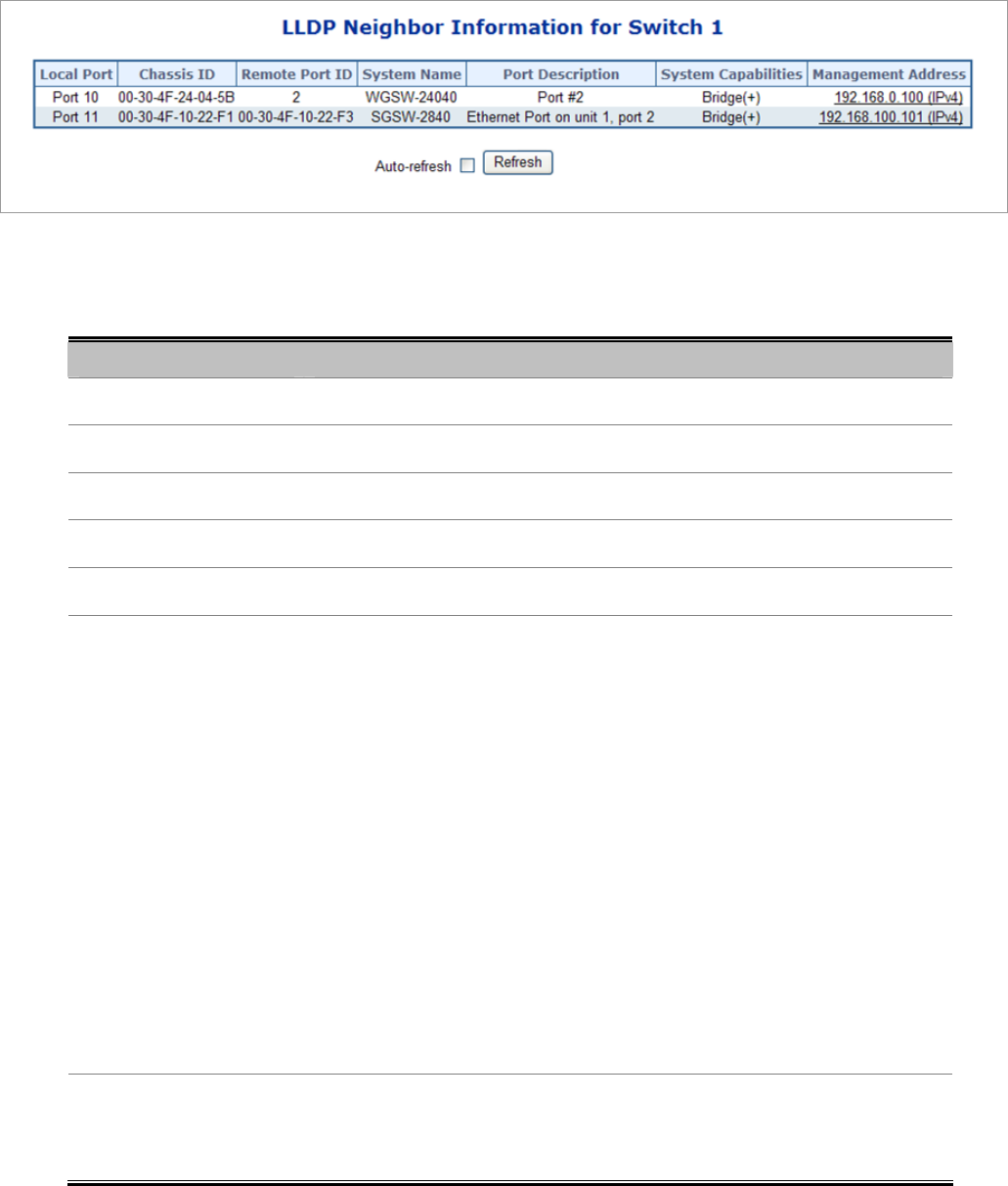

Figure 4-14-3 LLDP Neighbor Information page screenshot
The columns hold the following information:
Object Description
• Local Port
The port on which the LLDP frame was received.
• Chassis ID
The Chassis ID is the identification of the neighbor's LLDP frames.
• Remote Port ID
The Remote Port ID is the identification of the neighbor port.
• System Name
System Name is the name advertised by the neighbor unit.
• Port Description
Port Description is the port description advertised by the neighbor unit.
• System Capabilities
System Capabilities describes the neighbor unit's capabilities. The possible
capabilities are:
1. Other
2. Repeater
3. Bridge
4. WLAN Access Point
5. Router
6. Telephone
7. DOCSIS cable device
8. Station only
9. Reserved
When a capability is enabled, the capability is followed by (+). If the capability is
disabled, the capability is followed by (-).
• Management Address
Management Address is the neighbor unit's address that is used for higher
layer entities to assist the discovery by the network management. This could for
instance hold the neighbor's IP address.
