4.11.4 ACL Rate Limiter Configuration
Configure the rate limiter for the ACL of the switch.
The ACL Rate Limiter Configuration screen in Figure 4-11-13 appears.

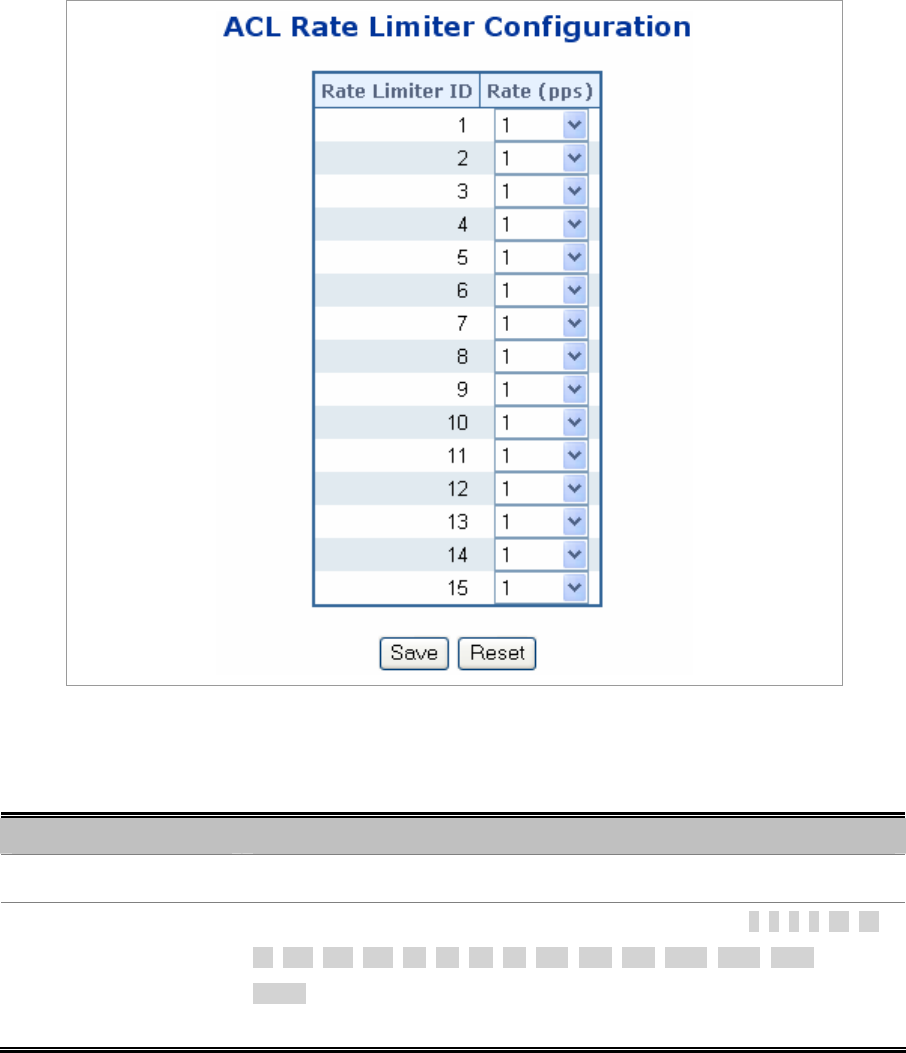

Figure 4-11-13 ACL Rate Limiter Configuration page screenshot
The page includes the following fields:
Object Description
• Rate Limiter ID
The rate limiter ID for the settings contained in the same row.
• Rate
The rate unit is packet per second (pps), configure the rate as 1, 2, 4, 8, 16, 32,
64, 128, 256, 512, 1K, 2K, 4K, 8K, 16K, 32K, 64K, 128K, 256K, 512K, or
1024K.
The 1 kpps is actually 1002.1 pps.
