User’s Manual of WGSW-24040 Series
SGSW-24040/24240 Series
158

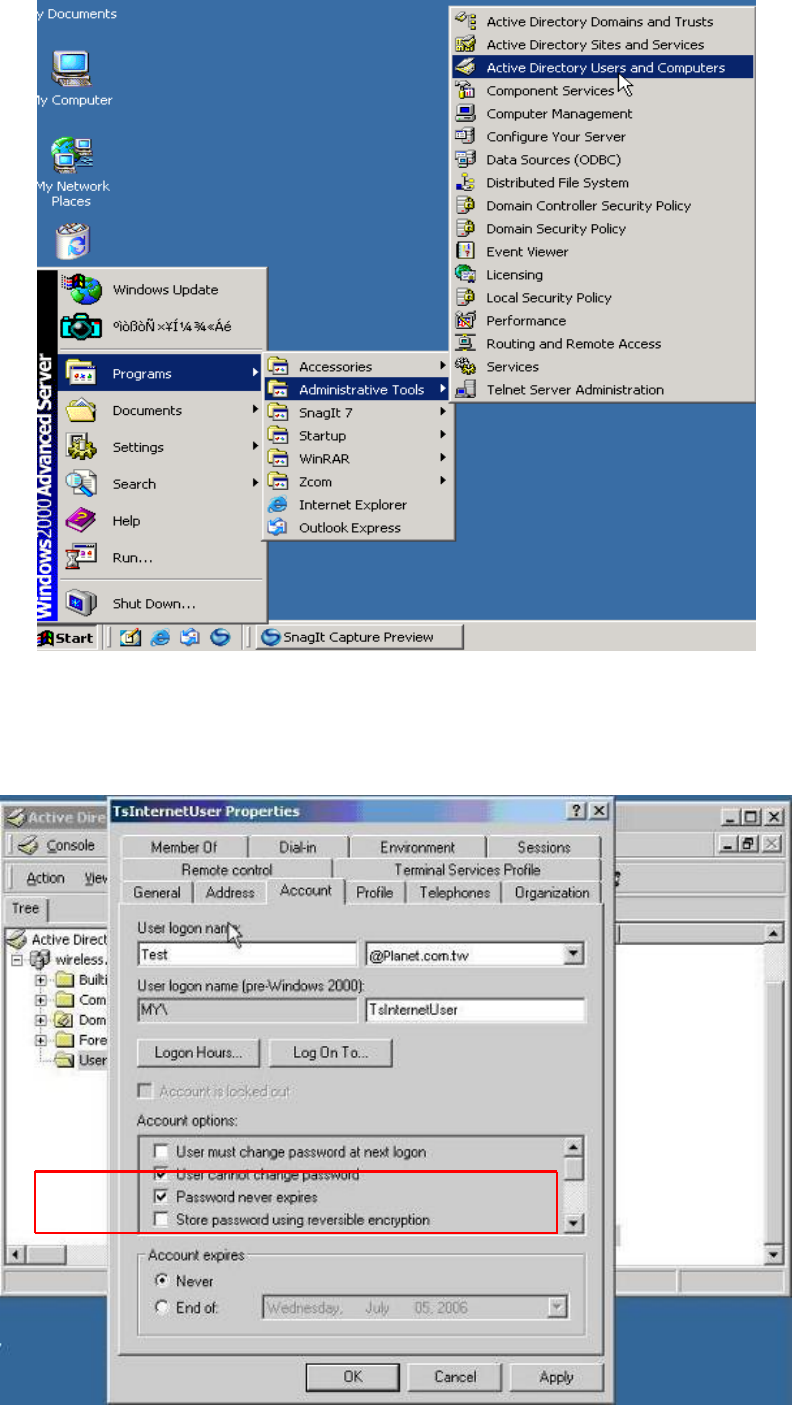

Figure 4-10-9 Windows Server RADIUS Server setting path
5. Enter ” Active Directory Users and Computers”, create legal user data, the next, right-click a user what you created to
enter properties, and what to be noticed:
Figure 4-10-10 TsInternetUser Properties screen
