4.9.5 Multicast Address Table

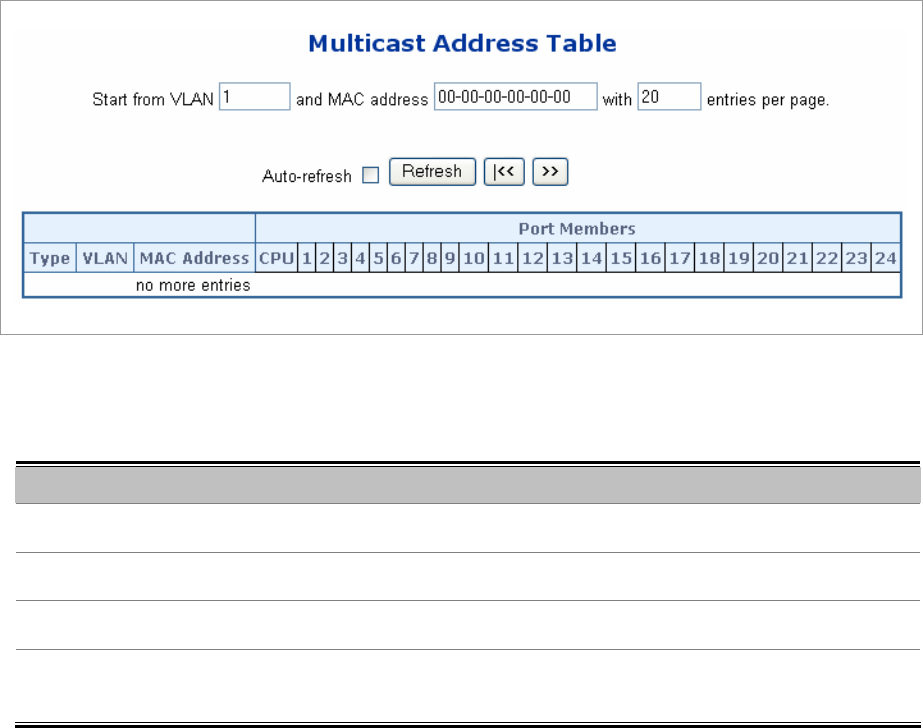

The Multicast Address Table screen in Figure 4-9-8 appears.
Figure 4-9-8 Multicast Address Table page screenshot
The page includes the following fields:
Object Description
• Delete
Check to delete the entry. It will be deleted during the next save.
• VLAN ID
The VLAN ID for the entry.
• MAC Address
The MAC address for the entry.
• Port Members
Checkmarks indicate which ports are members of the entry. Check or uncheck as
needed to modify the entry.
