User’s Manual of WGSW-24040 Series
SGSW-24040/24240 Series
141
4.9.4 IGMP Snooping Status
This page provides IGMP Snooping status.
The status relate to the currently selected stack unit, as reflected by the page header.
The IGMP Snooping status screen in Figure 4-9-7 appears.

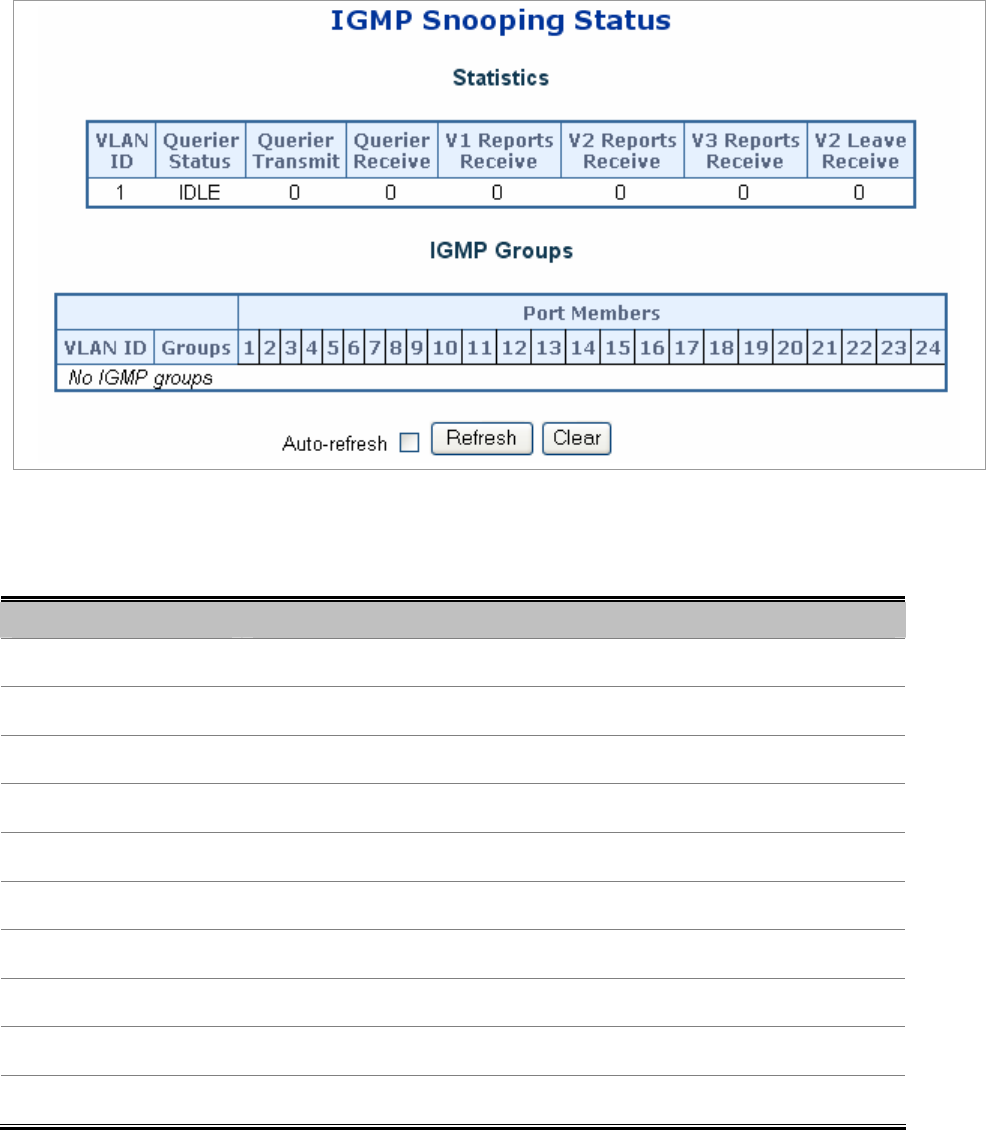

Figure 4-9-7 IGMP Snooping status page screenshot
The page includes the following fields:
Object Description
• VLAN ID
The VLAN ID of the entry.
• Groups
The present IGMP groups. Max. are 128 groups for each VLAN.
• Port Members
The ports that are members of the entry.
• Querier Status
Show the Querier status is "ACTIVE" or "IDLE".
• Querier Transmit
The number of Transmitted Querier.
• Querier Receive
The number of Received Querier.
• V1 Reports Receive
The number of Received V1 Reports.
• V2 Reports Receive
The number of Received V2 Reports.
• V3 Reports Receive
The number of Received V3 Reports.
• V2 Leave Receive
The number of Received V2 Leave.
