4.9.3 IGMP Port Related Configuration
This page provides IGMP Snooping related configuration.
Most of the settings are global, whereas the Router Port configuration is related to the currently selected stack unit, as reflected
by the page header.
The IGMP Port Related Configuration screen in Figure 4-9-6 appears.

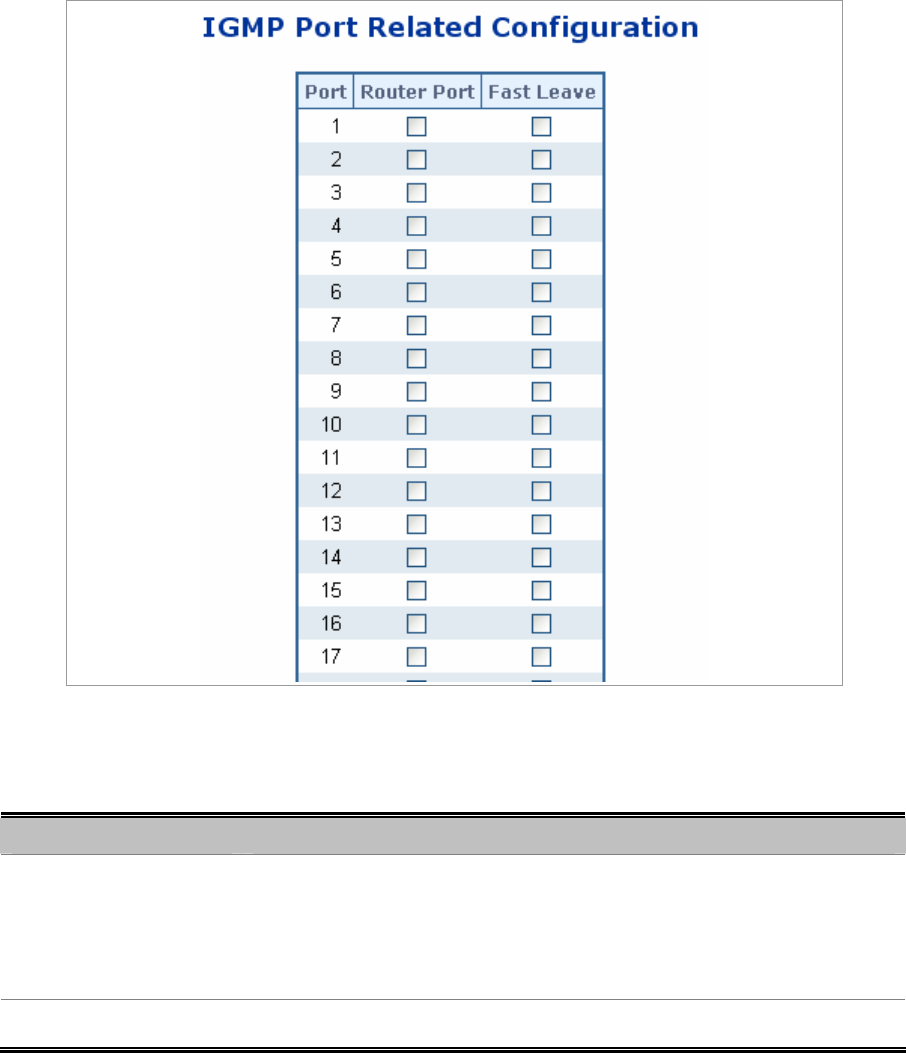

Figure 4-9-6 IGMP Port Related Configuration page screenshot
The page includes the following fields:
Object Description
• Router Port
Specify which ports act as router ports. A router port is a port on the Ethernet
switch that leads towards the Layer 3 multicast device or IGMP querier.
If an aggregation member port is selected as a router port, the whole aggregation
will act as a router port.
• Fast Leave
Enable the Fast Leave on the port.
