4.8.5 QoS Statistics
This page provides statistics for the different queues for all switch ports. The ports belong to the currently selected stack unit, as

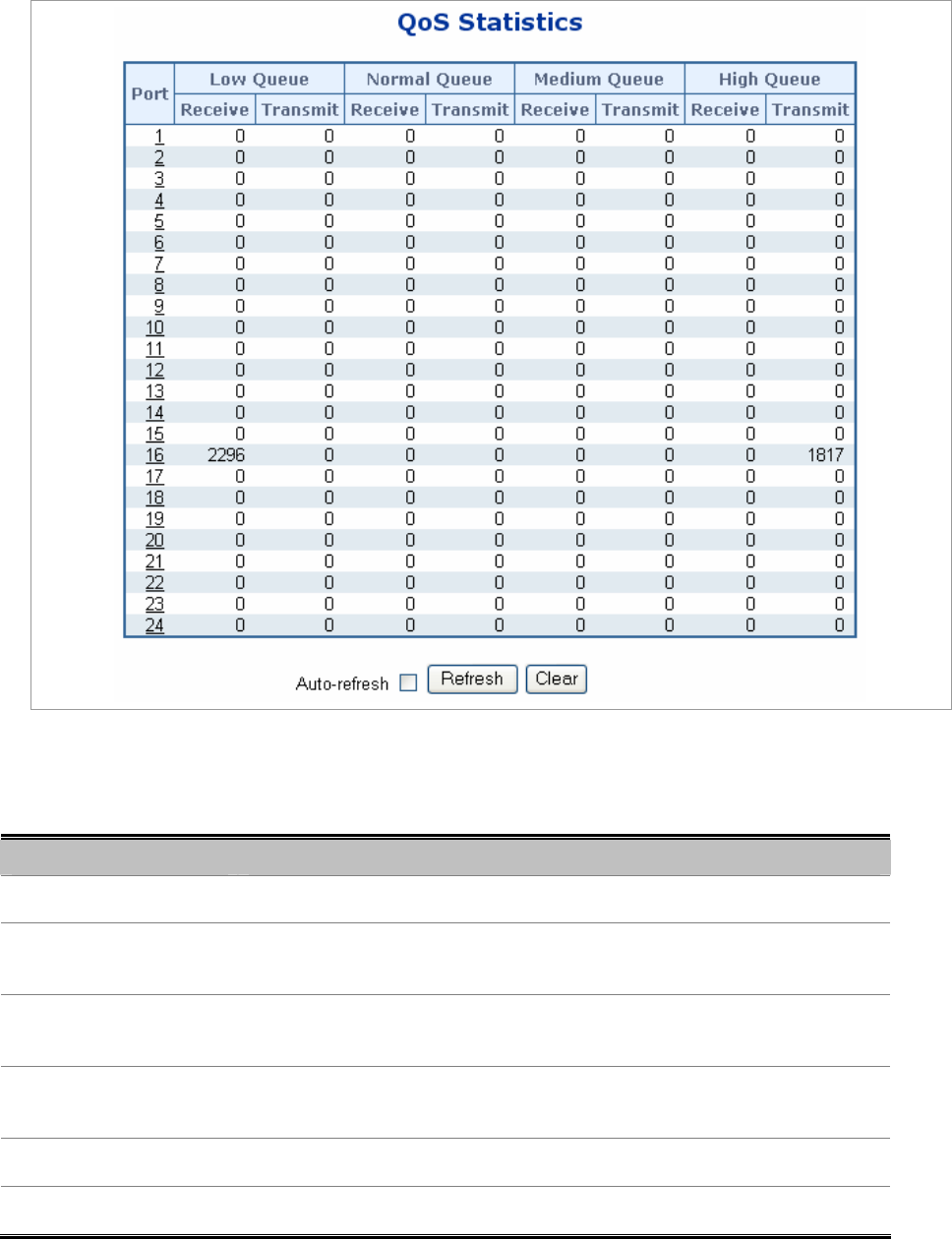

reflected by the page header. The QoS Statistics screen in Figure 4-8-12 appears.
Figure 4-8-12 QoS Statistics page screenshot
The page includes the following fields:
Object Description
• Port
The logical port for the settings contained in the same row.
• Low Queue
There are 4 QoS queues per port with strict or weighted queuing scheduling. This
is the lowest priority queue.
• Normal Queue
This is the normal priority queue of the 4 QoS queues. It has higher priority than
the "Low Queue".
• Medium Queue
This is the medium priority queue of the 4 QoS queues. It has higher priority than
the "Normal Queue".
• High Queue
This is the highest priority queue of the 4 QoS queues.
• Receive/Transmit
The number of received and transmitted packets per port.
